International Harvester 474

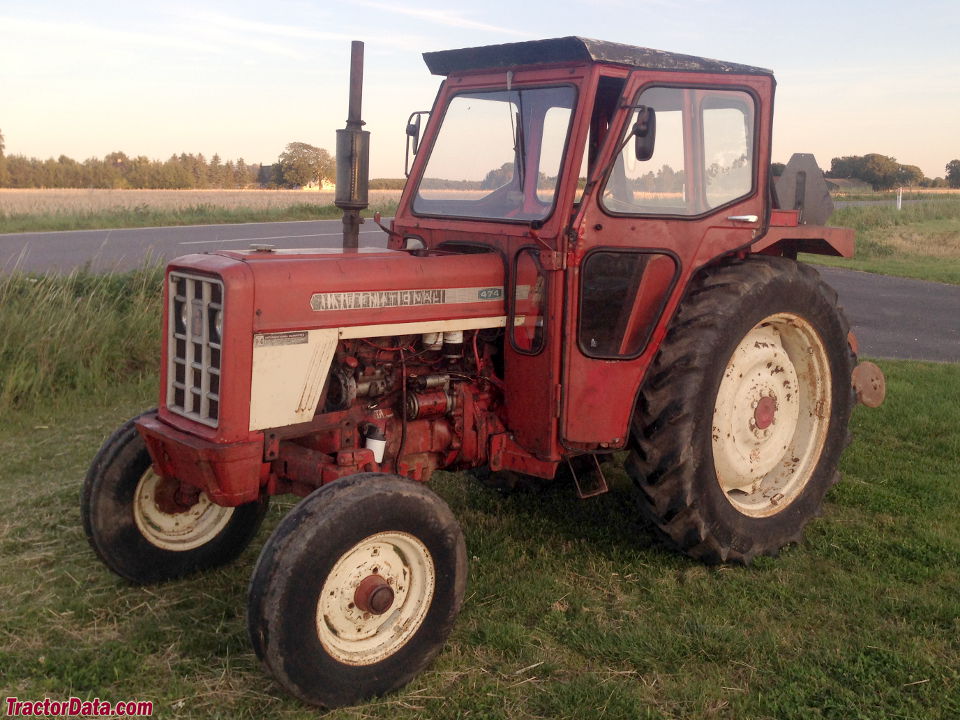

International Harvester 474 tractor photo
1972 - 1974
Utility tractor
Series:474
475
Production
Manufacturer:International Harvester
Type:Utility tractor
Factory:Doncaster, England
International Harvester 474 Power
Engine:62 hp
46.2 kW
PTO (claimed):49 hp
36.5 kW
International Harvester 474 Engine
International Harvester 3.4L 4-cyl diesel
Fuel tank:20.3 gal
76.8 L
Engine details ...
Mechanical
Chassis:4x2 2WD
Steering:power
Brakes:wet disc
Cab:Open operator station. Cab available.
Transmission:8-speed synchromesh
Transmission details ...
Hydraulics
Pump flow:11.9 gpm
45.0 lpm
Tractor hitch
Rear lift:3969 lbs
1800 kg
Power Take-off (PTO)
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:84.5 inches
214 cm
Weight:5854 lbs
2655 kg
Front tire:7.50-16
Rear tire:13.6-36
Full dimensions and tires ...
