Tractors > AGCO Allis > 9765

AGCO Allis 9765 Tests



AGCO Allis 9765 tractor photo
1998 - 2001
9700 Series
Row-Crop tractor
Series map:
9755
9765
9775
177.8hp*
200.0hp*
222.2hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 1782A: Navistar diesel 18-speed 4WD
OECD 1782: Cummins diesel 18-speed 4WD
Nebraska Tractor Test 1782A

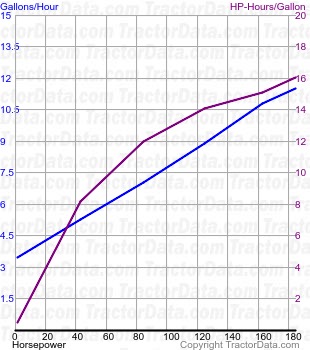

9765 fuel use from test 1782A
Nebraska Tractor Test 1782A
Navistar diesel 18-speed 4WD
September 22 - 26, 2000
Link: Nebraska Tractor Test 1782A file
PTO performance
Max power194.87 hp
145.3 kW
Fuel use11.6 gal/hour
43.9 l/hour
Power at rated engine speed183.20 hp
136.6 kW
Fuel use12.2 gal/hour
46.2 l/hour
Power at rated PTO speed200.01 hp
149.1 kW
Fuel use11.9 gal/hour
45.0 l/hour
OCED Tractor Test 1782

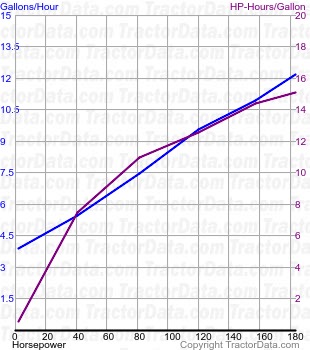

9765 fuel use from test 334
OCED Tractor Test 1782
Cummins diesel 18-speed 4WD
September 12 - 26, 2000
Link: OCED Tractor Test 1782 file
PTO performance
Max power200.01 hp
149.1 kW
Fuel use11.9 gal/hour
45.0 l/hour
Power at rated engine speed184.29 hp
137.4 kW
Fuel use11.5 gal/hour
43.5 l/hour
Drawbar performance
Max power160.22 hp
119.5 kW
Fuel use11.4 gal/hour
43.1 l/hour
Gear 8 used for power test.
Max pull18618 lbs
8445 kg
Gear 5 used for pull test.
