AGCO Allis 9630

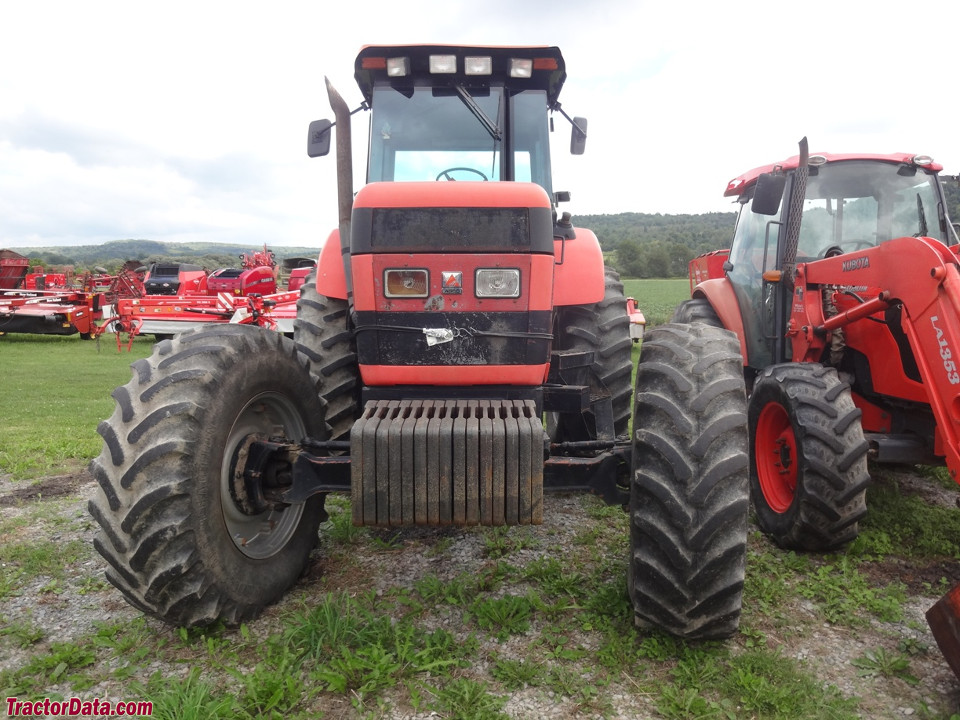

AGCO Allis 9630 tractor photo
1993 - 1995
9600 Series
Row-Crop tractor
Series map:
*Estimated engine power for comparison only.
ManufacturerAGCO Allis (a part of AGCO)
Row-Crop tractor
Original price was $72,000 in 1995
AGCO Allis 9630 Engine
Deutz 6.1L 6-cyl diesel
Fuel tank67 gal
253.6 L
Engine details ...
AGCO Allis 9630 Power
PTO (claimed)135 hp
100.7 kW
Drawbar (tested)120.01 hp
89.5 kW
PTO (tested)144.71 hp
107.9 kW
Performance test details ...
Two- or four-wheel drive
Final drivesinboard planetary
Differential lockelectro-hydraulic rear
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning.
Typeclosed center pressure-compensating
Pressure2250 psi
155.1 bar
Rear valves3 or 4
Pump flow24 gpm*Advertised. Flow during testing was 22.6 GPM.
90.8 lpm
Tractor hitch
Rear TypeIII/II
Controllower-link draft sensing
Rear lift (at 24"/610mm)7212 lbs*During testing, actual lift was 5913 pounds.
3271 kg
 8544 lbs*Claimed lift with optional assist cylinder. During testing, actual lift was 6962 pounds.
3875 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchhydraulic wet disc
Rear RPM540/1000
Dimensions & Tires
2WD Wheelbase124 inches
314 cm
4WD Wheelbase116.5 inches
295 cm
Weight14800 to 17028 pounds
Front tire11.00-16
2WD Rear tire18.4R38
Full dimensions and tires ...
9630 Serial Numbers
Location:Console, right side

FAQ: How to read a serial number table.
Charging systemalternator
Charging amps105
Battery CCA580
Battery volts12
9630 references literature
9600/9800 Series Tractors published by AGCO
9600 Series published in 1991, by AGCO
