Tractors > AGCO Allis > 9630

AGCO Allis 9630 Tests



AGCO Allis 9630 tractor photo
1993 - 1995
9600 Series
Row-Crop tractor
Series map:
9630
9650
150.0hp*
172.2hp*
*Estimated engine power for comparison only.
OCED Tractor Test 1674

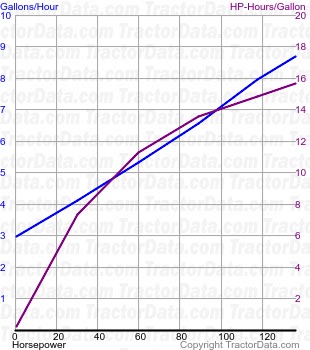

9630 fuel use from test 146
OCED Tractor Test 1674
Diesel 18-speed 4WD
April 8 - May 5, 1994
Link: OCED Tractor Test 1674 file
PTO performance
Max power144.71 hp
107.9 kW
Fuel use8.5 gal/hour
32.2 l/hour
Power at rated engine speed135.76 hp
101.2 kW
Fuel use8.7 gal/hour
32.9 l/hour
Power at rated PTO speed143.81 hp
107.2 kW
Fuel use8.6 gal/hour
32.6 l/hour
Drawbar performance
Max power120.01 hp
89.5 kW
Fuel use8.7 gal/hour
32.9 l/hour
Gear 7 used for power test.
Max pull19367 lbs
8784 kg
Gear 3 used for pull test.
