Fiat 82-94
|
|
| Production | |
| Manufacturer | Fiat |
| Utility tractor | |
| Fiat 82-94 Engine | |
| Fiat 3.9L 4-cyl diesel | |
| Fuel tank | 24.6 gal 93.1 L |
 Engine details ... | |
| Fiat 82-94 Transmissions | |
| 12-speed | |
| 20-speed creeper | |
| 24-speed two-speed power shift | |
 Transmission details ... |
| Fiat 82-94 Power | |
| Engine | 80 hp 59.7 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| Final drives | planetary |
| Differential lock | mechanical rear |
| Power steering | |
| Wet disc brakes | |
| Cab standard. Four-post ROPS canopy available. | |

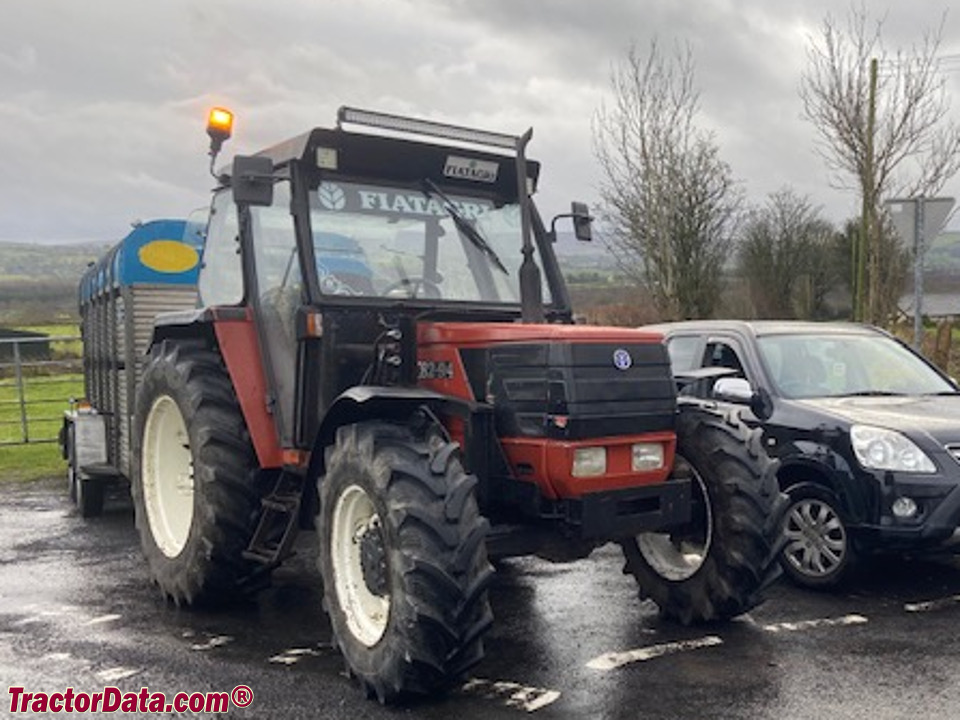

| Photos | |
 | |
 Fiat 82-94 photos... | |
| Hydraulics | |
| Pump flow | 11.8 gpm 44.7 lpm |
| Tractor hitch | |
| Rear lift | 7717 lbs 3500 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/1000 |
| Dimensions & Tires | |
| 2WD Wheelbase | 92.1 inches 233 cm |
| 4WD Wheelbase | 91.1 inches 231 cm |
| Weight | 7650 to 8378 pounds |
| Front tire | 7.50-18 |
| 2WD Rear tire | 13.6-38 |
 Full dimensions and tires ... | |
| References | |
 | |
| 94 Series published in 1993, by Fiat |
