Fiat 70-90

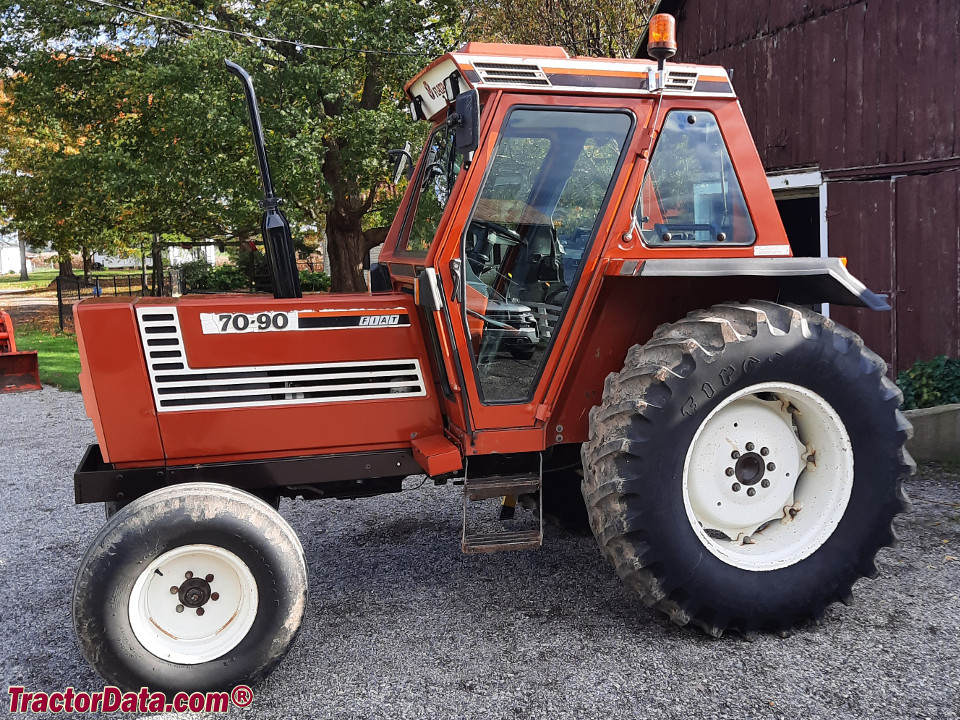

Fiat 70-90 tractor photo
1984 - 1992
90 Series
Utility tractor
Series:65-9070-9080-90
Production
Manufacturer:Fiat
Type:Utility tractor
Variants
70-90:2WD
70-90DT:4WD
Fiat 70-90 Power
Engine:70 hp
52.2 kW
Fiat 70-90 Engine
Fiat 3.6L 4-cyl diesel
Fuel tank:24.6 gal
93.1 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Final drives:planetary
Differential lock:hydraulic rear
Steering:power
Brakes:hydraulic wet disc
Cab:Cab standard with heater.
Transmissions:12-speed
 12-speed shuttle
 20-speed creeper
 24-speed
Transmission details ...
Photos
No photos of the Fiat 70-90 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Pressure:2755 psi
190.0 bar
Pump flow:9.1 gpm
34.4 lpm
Tractor hitch
Rear Type:II/I
Rear lift:7716 lbs
3499 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:280mm dry disc
Rear RPM:540
 540/1000
Engine RPM:540@2200
1000@2375
Dimensions & Tires
Wheelbase:92.1 inches
233 cm
Weight:6702 to 7341 pounds
Front tire:7.50-18
2WD Rear tire:13.6-38
Full dimensions and tires ...
