Fiat 55-90

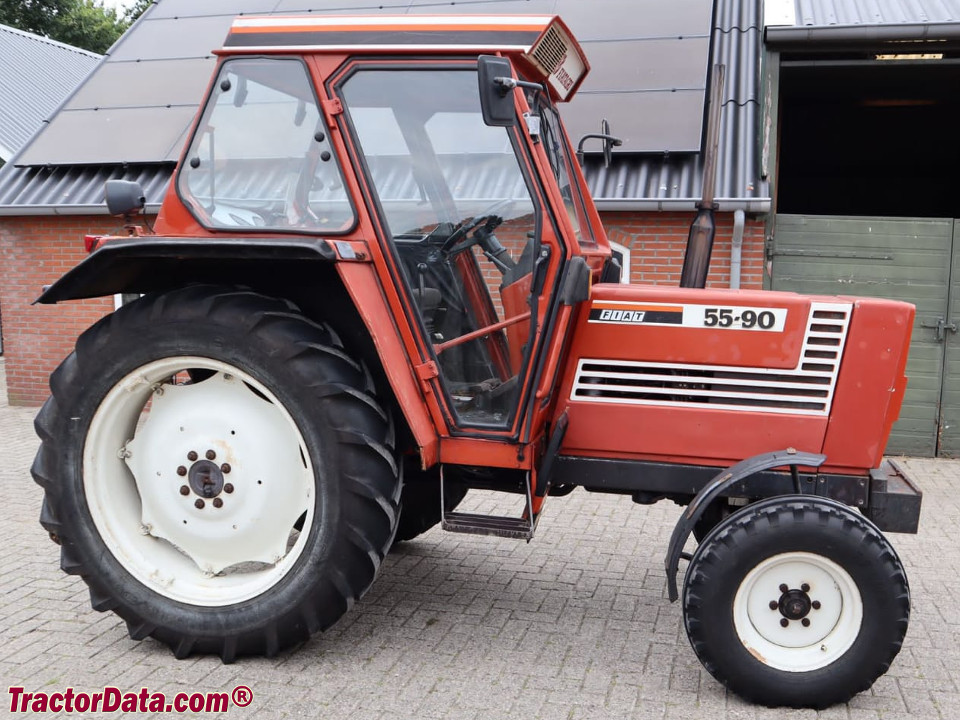

Fiat 55-90 tractor photo
1984 - 1992
90 Series
Utility tractor
Series:55-9060-90
Production
Manufacturer:Fiat
Type:Utility tractor
Variants
55-90:2WD
55-90DT:4WD
Fiat 55-90 Power
Engine:55 hp
41.0 kW
Fiat 55-90 Engine
Fiat 2.7L 3-cyl diesel
Fuel tank:24.6 gal
93.1 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Final drives:planetary
Differential lock:hydraulic rear
Steering:power
Brakes:hydraulic wet disc
Cab:Cab standard with heater.
Transmissions:12-speed
 12-speed shuttle
 20-speed creeper
Transmission details ...
Photos
No photos of the Fiat 55-90 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Pump flow:8.9 gpm
33.7 lpm
Tractor hitch
Rear Type:II/I
Rear lift:6393 lbs
2899 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:280mm dry disc
Rear RPM:540
 540/1000
Engine RPM:540@2200
1000@2375
Dimensions & Tires
2WD Wheelbase:87.8 inches
223 cm
4WD Wheelbase:86.6 inches
219 cm
Weight:6526 to 6923 pounds
Front tire:7.50-16
2WD Rear tire:16.9-28
Full dimensions and tires ...
