Fiat 1880

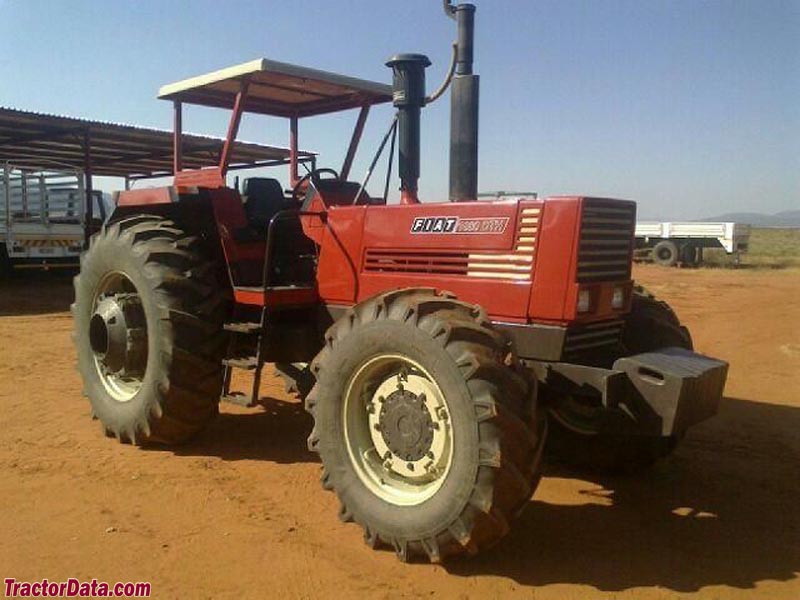

Fiat 1880 tractor photo
1979 - 1984
80 Series
Row-Crop tractor
Series map:
1580
1880
115.6kw
134.2kw
Production
ManufacturerFiat
Row-Crop tractor
Variants
18802WD
1880 DT4WD
Fiat 1880 Engine
Fiat 8.1L 6-cyl diesel
Fuel tank74 gal
280.1 L
Engine details ...
Fiat 1880 Transmissions
12-speed
24-speed creeper
12-speed mechanical shuttle
Transmission details ...
Fiat 1880 Power
Engine180 hp
134.2 kW
PTO (claimed)162 hp
120.8 kW
Mechanical
Two- or four-wheel drive
Power steering
Wet disc brakes
Cab standard with optional air-conditioning. Four-post ROPS with canopy available.
Hydraulics
Typeopen center
Valves1 to 3
Pump flow14.7 gpm
55.6 lpm
Tractor hitch
Rear TypeIII
Controllower-link draft sensing
Rear lift13010 lbs
5901 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchhydraulic wet disc
Rear PTO Type1000 (1.375)
 1000 (1.75)
Engine RPM1000@2075
Dimensions & Tires
2WD Wheelbase116.7 inches
296 cm
4WD Wheelbase113.6 inches
288 cm
Weight13450 to 14443 pounds
Front tire11.00-16
2WD Rear tire20.8-38
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps55
Battery volts12
