Fiat 780

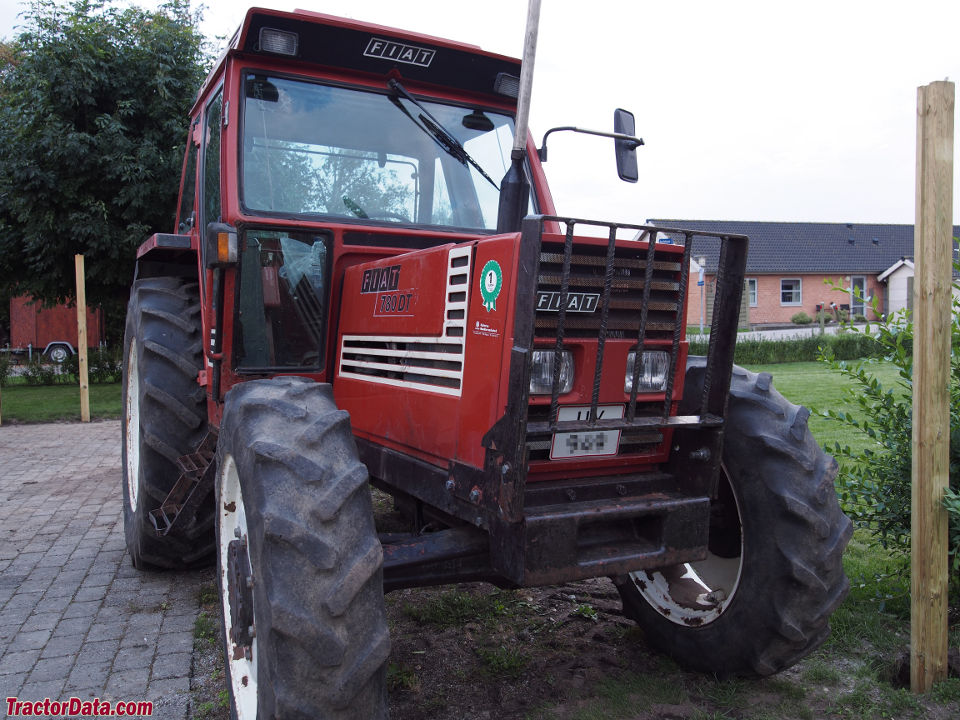

Fiat 780 tractor photo
1975 - 1984
Series:780880
Production
Manufacturer:Fiat
Variants
780:2WD
780DT:4WD
Fiat 780 Power
Engine:78 hp
58.2 kW
Fiat 780 Engine
Fiat 3.7L 4-cyl diesel
Fuel tank:21.1 gal
79.9 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD (780DT)
Final drives:planetary
Steering:hydrostatic power
Brakes:hydraulic wet disc
Trailer brakes:hydraulic*Optional
Cab:Open operator station. Optional four-post ROPS. Optional cab with heater.
Transmissions:8-speed
 12-speed
 16-speed
Transmission details ...
Hydraulics
Type:open center
Pump flow:6.82 gpm
25.8 lpm
Tractor hitch
Rear Type:II
Control:position and draft control
Rear lift:5292 lbs
2400 kg
Rear Arms:telecoping (optional)
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
 540/1000 (1.375)
 1000 (1.75)
Dimensions & Tires
2WD Wheelbase:89 inches
226 cm
4WD Wheelbase:89.4 inches
227 cm
Weight:6482 to 7056 pounds
Front tire:7.50-18
Rear tire:18.4x30 (2WD)
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Battery volts:12
Battery AH:120
