Fiat 480

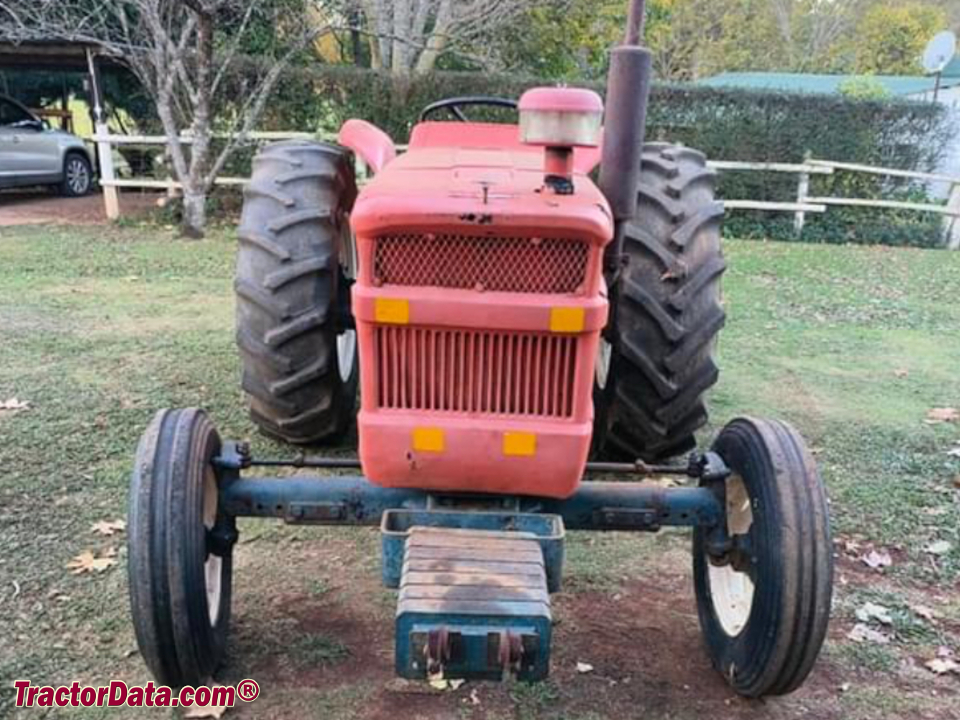

Fiat 480 tractor photo
1973 - 1984
Fiat 480 Engine
Fiat 2.6L 3-cyl diesel
Engine details ...
Fiat 480 Transmissions
6-speed gear
8-speed gear
12-speed creeper
Transmission details ...
Fiat 480 Power
Engine48 hp
35.8 kW
Two- or four-wheel drive
Manual steering
Open operator station.
No photos of the Fiat 480 are currently available. To submit yours, email it to Photos may only be used with the permission of the original photographer.
Pump flow6.3 gpm
23.8 lpm
Tractor hitch
Rear TypeI
Rear lift3417 lbs
1549 kg
Power Take-off (PTO)
Rear PTOlive
Rear RPM540 (1.375)
Engine RPM540@1970
Dimensions & Tires
2WD Wheelbase76.9 inches
195 cm
4WD Wheelbase78.3 inches
198 cm
Weight3638 lbs
1650 kg
Front tire7.50-16
Rear tire12.4-32
Full dimensions and tires ...
