John Deere 5510

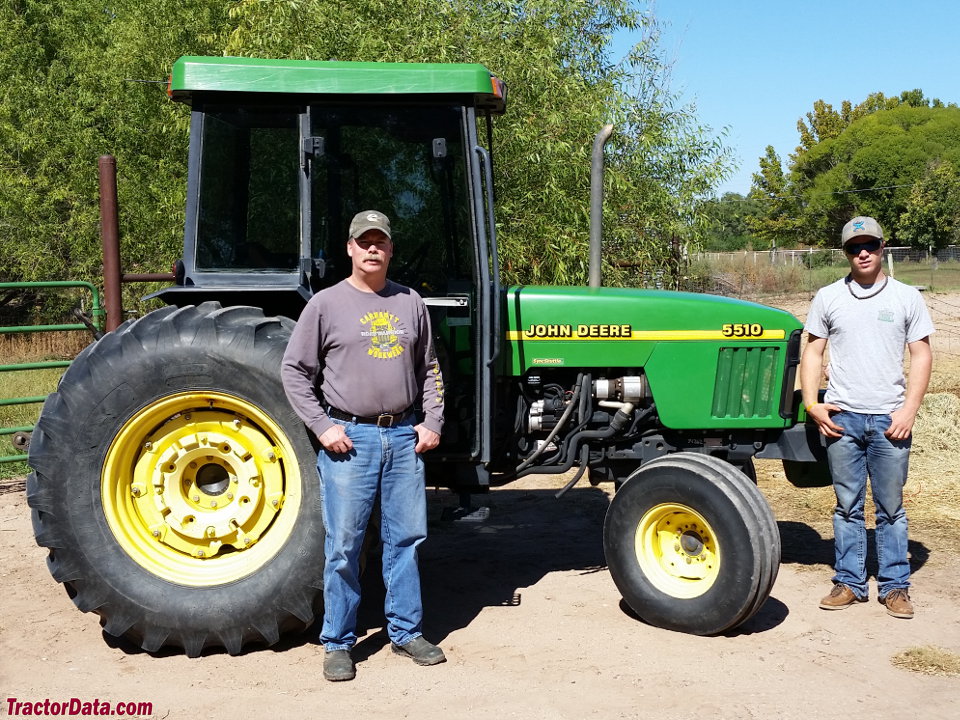

John Deere 5510 tractor photo
1998 - 2001
5000 Ten Series
Utility tractor
Series map:
5410
5510
81.0hp
89.0hp
Production
ManufacturerJohn Deere
Utility tractor
Built in Augusta, Georgia, USA
Original price was $30,214 in 2001
Variants
5510Nnarrow profile
John Deere 5510 Engine
John Deere 4.5L 4-cyl diesel
Fuel tank23 gal
87.1 L
Engine details ...
John Deere 5510 Transmissions
9-speed unsynchronized gear
9-speed partially synchronized
12-speed power shuttle
Transmission details ...
John Deere 5510 Power
Engine89 hp
66.4 kW
PTO (claimed)75 hp
55.9 kW
PTO (tested)82.24 hp
61.3 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
Two-post ROPS. Cab optional.
Photos
John Deere 5510
John Deere 5510 photos...
Hydraulics
Typeopen center
Pressure2855 psi
196.9 bar
Valves5
Pump flow16.4 gpm
62.1 lpm
Total flow23 gpm
87.1 lpm
Steering flow6.6 gpm
25.0 lpm
Steering press.1955 psi
134.8 bar
Tractor hitch
Rear TypeI/II
Rear lift (at 24"/610mm)3,374 lbs
1530 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540
 540/540E (SyncShuttle)
Dimensions & Tires
Wheelbase85.7 inches
217 cm
Weight5720 to 7140 pounds
Front tire7.50-16
2WD Rear tire16.9-30
Full dimensions and tires ...
John Deere 5510 attachments
front-end loader
backhoe
Attachment details ...
5510 Serial Number Location
John Deere 5510 serial number location
The tractor's serial number plate is on the right side of the frame, above the front axle.
5510 Serial Numbers
1998150000
1999250001
2000350001
2001450001

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
ROPS Charging amps40
Cab Charging amps60
Battery CCA700
Battery volts12
ROPS Battery Group28H
Cab Battery Group31
Questions
I was looking at a 5510 online and dont see any hydraulic controls on the right side in the cab. It has 2 rear scvs and the seller says that they work off of the joystick control. Is this right?

Correct. The first two SCVs on a 5510 are operated with the joystick. Forward-backward for the left-side coupler and left-right for right-side coupler. If there is a third SCV then there would be an additional lever to the right of the driver's seat.

Email: Peter@TractorData.com
References
5510 references literature
Operator's Manual 5210, 5310, 5410 and 5510 Tractors (OMRE71736) published in 1996*
New 5000 Ten Series published in 1998, by John Deere
*Publication contains known errors.
