Tractors > John Deere > 5510

John Deere 5510 Engine



John Deere 5510 tractor photo
1998 - 2001
5000 Ten Series
Utility tractor
Series map:
5410
5510
81.0hp
89.0hp
Engine Detail
John Deere 4045T
turbocharged diesel
4-cylinder
liquid-cooled
Displacement276 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
Power89 hp
66.4 kW
Compression17.0:1
Rated RPM2400
Idle RPM825-2600
Operating RPM1600-2400
Torque227.2 lb-ft
308.1 Nm
Torque RPM1400
Firing order1-3-4-2
Starter volts12
Coolant capacity11.4 qts
10.8 L
Coolant change2000 h
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

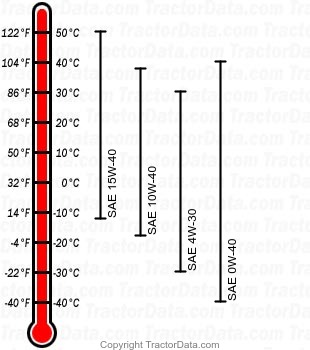

5510 diesel engine oil chart
Oil capacity9 qts
8.5 L
Oil change100 h

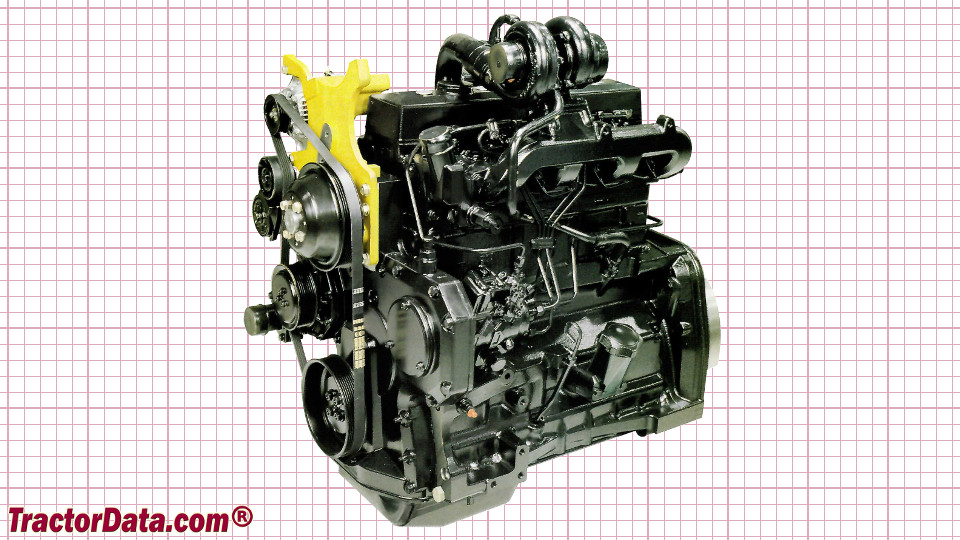

John Deere 5510 Engine
John Deere 5510 engine image
