John Deere 5310 Engine


John Deere 5310 tractor photo
1998 - 2001
5000 Ten Series
Utility tractor
Series map:
5210
5310
5410
53.0hp
64.0hp
81.0hp
Engine Detail
John Deere 3029T
turbocharged diesel
3-cylinder
liquid-cooled
Displacement179 ci
2.9 L
Bore/Stroke4.19x4.33 inches
106 x 110 mm
Power64 hp
47.7 kW
Compression17.8:1
Rated RPM2400
Idle RPM825-2600
Operating RPM1600-2400
Torque143.8 lb-ft
195.0 Nm
Torque RPM1400
Firing order1-2-3
Starter volts12
Coolant capacity10 qts
9.5 L
Coolant change2000 h
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

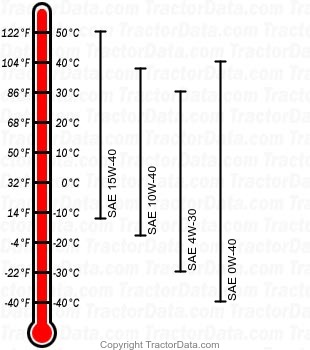

5310 diesel engine oil chart
Oil capacity9 qts
8.5 L
Oil change100 h
