Tractors > John Deere > 5320

John Deere 5320 Engine



John Deere 5320 tractor photo
2001 - 2004
5000 Twenty Series
Utility tractor
Series map:
5220
5320
5420
53.0hp
64.0hp
81.0hp
Engine Detail
John Deere 3029T
turbocharged diesel
3-cylinder
liquid-cooled
Displacement179 ci
2.9 L
Bore/Stroke4.19x4.33 inches
106 x 110 mm
Power64 hp
47.7 kW
Compression17.8:1
Rated RPM2400
Idle RPM825-2625
Operating RPM1600-2400
Torque143.8 lb-ft
195.0 Nm
Torque RPM1400
Firing order1-2-3
Starter volts12
Coolant capacity10 qts
9.5 L
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

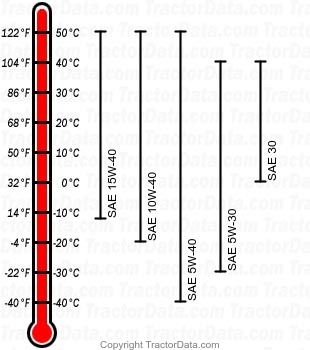

5320 diesel engine oil chart
Oil capacity9 qts
8.5 L
Oil change100 h
