| | 1998 - 2001 |
| 5000 Ten Series | | Utility tractor |
|
Series map:
5210
5310
5410
53.0hp
64.0hp
81.0hp
| Transmission options |
| 9-speed unsynchronized gear |
| 9-speed partially synchronized |
| 12-speed power shuttle |
| Transmission |
| Transmission | CollarShift
|
| Type | unsynchronized gear
|
| Gears | 9 forward and 3 reverse
|
| Clutch | dry disc
|
| Oil capacity | 40 qts
37.9 L
|
| The Collar Shift transmission is controlled with two levers and the foot clutch. The right-hand lever selects one of three speeds (1-3) or reverse (R). The left-hand lever selects one of three ranges (A-C). The tractor must be stopped, and clutch used, to shift either speed or range. |

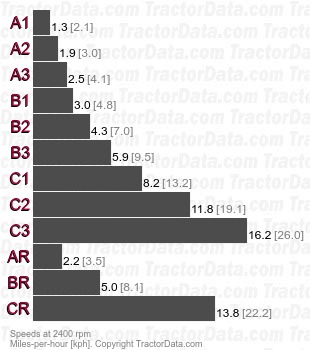

| Speeds |
| With 16.9-28 rear tires. |
|

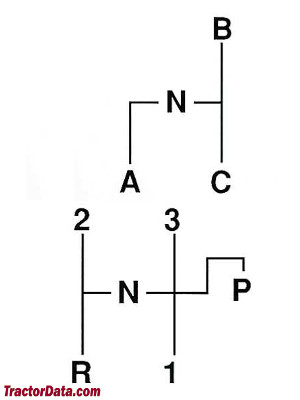

| Shift Pattern |
 |
| Transmission |
| Transmission | SyncShuttle
|
| Type | partially synchronized
|
| Gears | 9 forward and 3 reverse
|
| Clutch | dry disc
|
| Oil capacity | 40 qts
37.9 L
|
| Three speeds (1-3) plus reverse (R) in three ranges (A-C). Synchronized shifting, using the clutch, between the three forward speeds and reverse. Tractor must be stopped, and clutch used, to shift range. |
| Speeds |
| With 16.9-28 rear tires. |
|
| Shift Pattern |
 |
| Transmission |
| Transmission | PowrReverser
|
| Type | power shuttle
|
| Gears | 12 forward and reverse
|
| Clutch | wet disc
|
| Oil capacity | 46 qts
43.5 L
|
| Four speeds (1-4) in three ranges (A-C) with forward-reverse shuttle lever. Direction changes may be done while moving using the left-hand shuttle lever. Speed changes are synchronized using the clutch. Tractor must be stopped, and clutch used, to shift ranges. At tractor start-up, clutch pedal must be cycled once before tractor will move. |

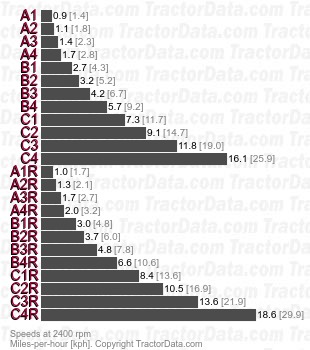

| Speeds |
| With 16.9-28 rear tires. |
|

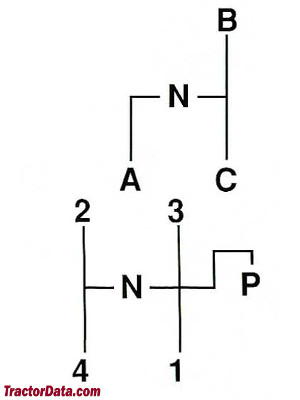

| Shift Pattern |
 |
