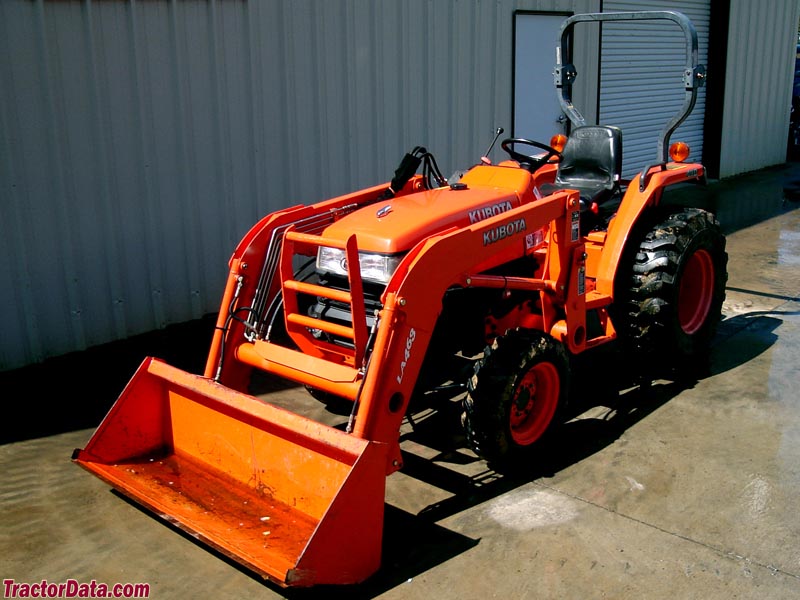

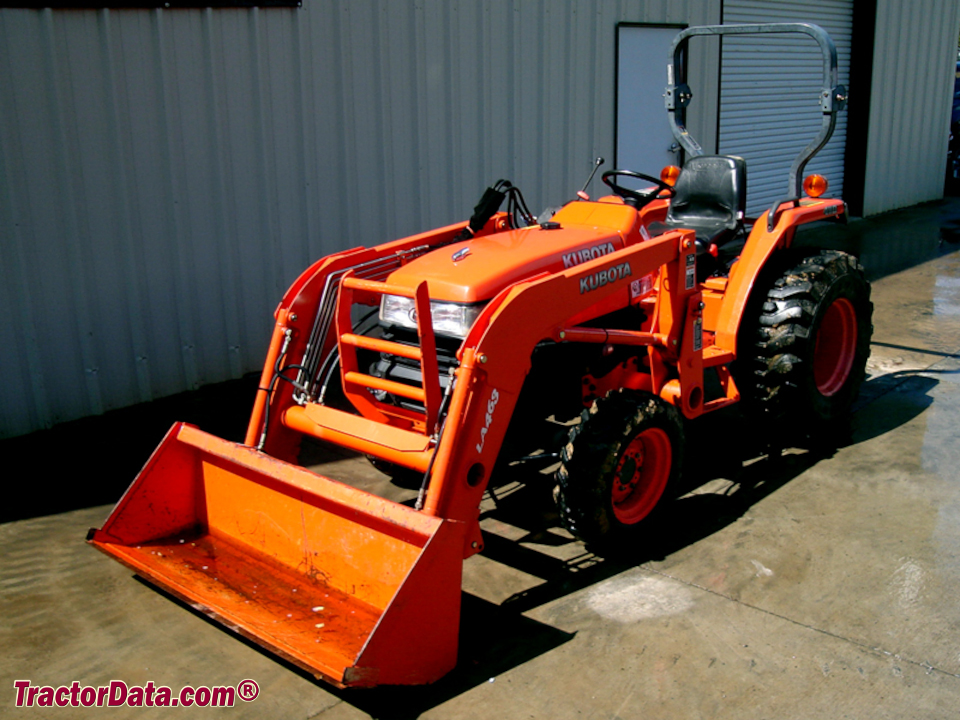

Kubota L3400
| | 2004 - 2010 |
|
| Standard L Series | | Compact Utility tractor |
|
| Production |
| Manufacturer: | Kubota
|
| Type: | Compact Utility tractor
|
| Variants |
| L3400F: | 2WD gear
|
| L3400DT: | 4WD gear
|
| L3400HST: | 4WD hydro
|
| Kubota L3400 Power |
| Engine (gross): | 34.7 hp
25.9 kW
|
| Gear PTO (claimed): | 29 hp
21.6 kW
|
| Hydro PTO (claimed): | 27.5 hp
20.5 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | rear standard
|
| Steering: | power
|
| Brakes: | mechanical wet disc
|
| Cab: | Two-post ROPS. Foldable ROPS and sunshade optional.
|
| Transmissions: | hydrostatic
|
| | 8-speed constant mesh
|
 Transmission details ... |
| Capacity |
| Fuel: | 9 gal
34.1 L
|
| Hydraulic system: | 7.3 gal
27.6 L
|
| Front axle: | 4.8 qts
4.5 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 7.3 gal
27.6 L
|
| Valves: | 0 to 3
|
| Pump flow: | 6.8 gpm
25.7 lpm
|
| Total flow: | 10.9 gpm
41.3 lpm
|
| Steering flow: | 4.1 gpm
15.5 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Rear lift (at ends): | 1985 lbs
900 kg
|
| Rear lift (at 24"/610mm): | 1433 lbs
650 kg
|
| Power Take-off (PTO) |
| Rear PTO: | live
|
| Hydro Rear PTO: | independent
|
| Rear RPM: | 540 (1.375)
|
| Engine RPM: | 540@2425
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 40
|
| Battery CCA: | 490
|
| Battery volts: | 12
|
