Kubota L4330
|
|
| Production | |
| Manufacturer | Kubota |
| Compact Utility tractor | |
| Variants | |
| L4330DT | 4WD 8 speed |
| L4330GST | 4WD 12 speed |
| L4330HST | hydro |
| L4330HSTC | hydro cab |
| Kubota L4330 Engine | |
| Kubota 2.2L 4-cyl diesel | |
| Fuel tank | 10.6 gal 40.1 L |
 Engine details ... | |
| Kubota L4330 Transmissions | |
| hydrostatic | |
| 8-speed fully synchronized | |
| 12-speed power shift | |
 Transmission details ... |
| Kubota L4330 Power | |
| Engine (gross) | 43.2 hp 32.2 kW |
| Engine (net) | 41 hp 30.6 kW |
| Gear PTO (claimed) | 36 hp 26.8 kW |
| Hydro PTO (claimed) | 34.5 hp 25.7 kW |
| Mechanical | |
| Four-wheel drive | |
| Power steering | |
| Wet disc brakes | |
| Grand Cab optional |

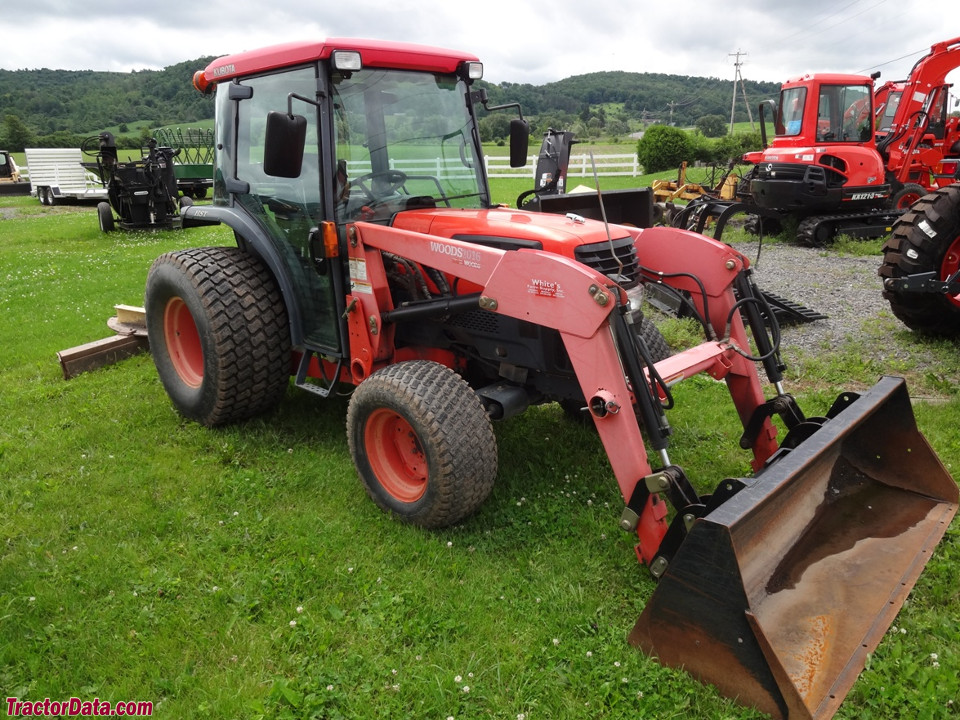

| Photos | |
 | |
 Kubota L4330 photos... | |
| Hydraulics | |
| Type | open center |
| Valves | 3 OptOptional |
| Pump flow | 9.4 gpm 35.6 lpm |
| Total flow | 14.1 gpm 53.4 lpm |
| Steering flow | 4.7 gpm 17.8 lpm |
| Tractor hitch | |
| Rear Type | I |
| Control | position control with optional draft control |
| Rear lift (at 24"/610mm) | 2760 lbs 1251 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
| Mid PTO | independent OptOptional |
| Mid PTO Type | 2000 |
| Dimensions & Tires | |
| Wheelbase | 74.6 inches 189 cm |
| Weight | 3440 to 3860 pounds |
| Front tire | 8.3-16 |
| Rear tire | 14.9-24 |
 Full dimensions and tires ... | |
| Kubota L4330 attachments | |
| snowblower | |
| blade | |
| front-end loader | |
| backhoe | |
 Attachment details ... |
| L4330 Serial Numbers | |
| Location: | Serial number decal on the left side of the tractor frame, above the front axle. |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| ROPS Charging amps | 40 |
| Cab Charging amps | 60 |
| Battery volts | 12 |
| References | |
 | |
| Grand L 30 Series published in 2004, by Kubota* | |
| *Publication contains known errors. |
