Kubota L3830
|
|
| Production | |
| Manufacturer | Kubota |
| Compact Utility tractor | |
| Variants | |
| L3830F | 2WD |
| L3830DT | 4WD 8 speed |
| L3830GST | 4WD 12 speed |
| L3830HST | 4WD hydro |
| Kubota L3830 Engine | |
| Kubota 1.8L 3-cyl diesel | |
| Fuel tank | 10.6 gal 40.1 L |
 Engine details ... | |
| Kubota L3830 Transmissions | |
| hydrostatic | |
| 8-speed fully synchronized | |
| 12-speed power shift | |
 Transmission details ... |
| Kubota L3830 Power | |
| Engine (gross) | 39 hp 29.1 kW |
| Engine (net) | 37.4 hp 27.9 kW |
| Gear PTO (claimed) | 32 hp 23.9 kW |
| Hydro PTO (claimed) | 30.5 hp 22.7 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| Power steering | |
| Wet disc brakes | |
| Two-post folding ROPS. |

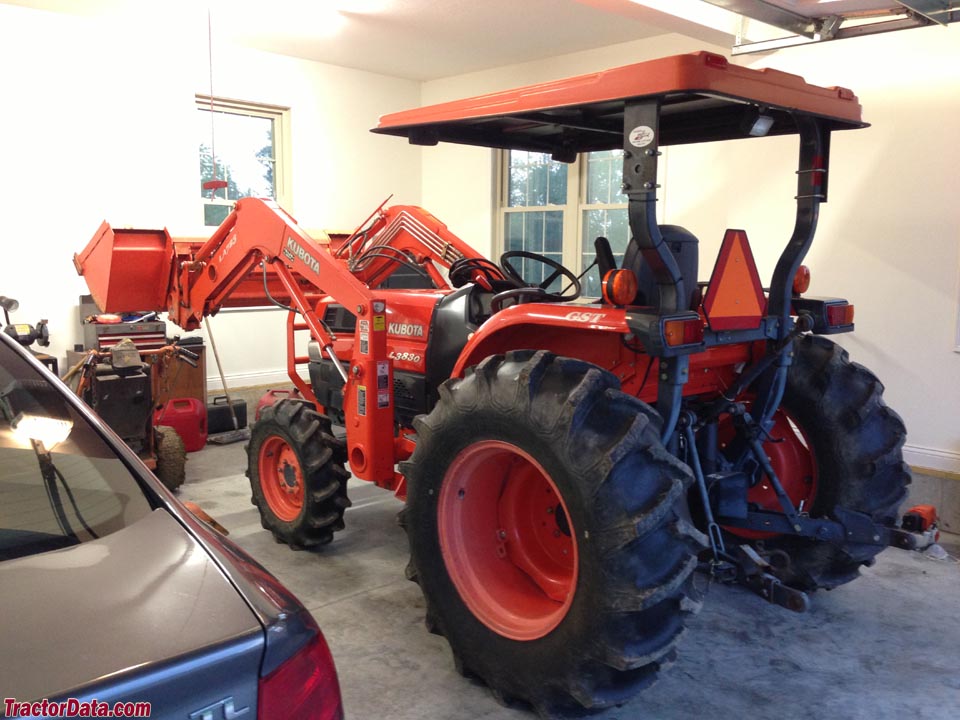

| Photos | |
 | |
 Kubota L3830 photos... | |
| Hydraulics | |
| Type | open center |
| Valves | 3 OptOptional |
| Pump flow | 8.3 gpm 31.4 lpm |
| Total flow | 13.2 gpm 50.0 lpm |
| Steering flow | 4.9 gpm 18.5 lpm |
| Tractor hitch | |
| Rear Type | I |
| Control | position control with optional draft control |
| Rear lift (at 24"/610mm) | 2760 lbs 1251 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
| Mid PTO | independent OptOptional |
| Mid PTO Type | 2000 |
| Dimensions & Tires | |
| 2WD Wheelbase | 72.6 inches 184 cm |
| 4WD Wheelbase | 72.4 inches 183 cm |
| Weight | 3150 to 3340 pounds |
| Front tire | 6.0-16 |
| 2WD Rear tire | 14.9-24 |
 Full dimensions and tires ... | |
| Kubota L3830 attachments | |
| 72" mid-mount mower deck | |
| snowblower | |
| blade | |
| front-end loader | |
| backhoe | |
 Attachment details ... |
| L3830 Serial Numbers | |
| Location: | Serial number decal on the left side of the tractor frame, above the front axle. |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 40 |
| Battery volts | 12 |
| References | |
 | |
| Grand L 30 Series published in 2004, by Kubota* | |
| *Publication contains known errors. |
