Kubota M5700
|
|
| Production | |
| Manufacturer | Kubota |
| Utility tractor | |
| Kubota M5700 Engine | |
| Kubota 2.7L 5-cyl diesel | |
 Engine details ... |
| Kubota M5700 Transmission | |
| 8-speed synchronized shuttle | |
 Transmission details ... |
| Kubota M5700 Power | |
| Engine | 61.6 hp 45.9 kW |
| PTO (claimed) | 52 hp 38.8 kW |
| Drawbar (tested) | 48.1 hp 35.9 kW |
| PTO (tested) | 52.6 hp 39.2 kW |
 Performance test details ... | |
| Mechanical | |
| Two- or four-wheel drive | |
| Power steering | |
| Wet disc brakes | |
| Two-post folding ROPS. Cab optional with air-conditioning. |
| Photos | |
 | |

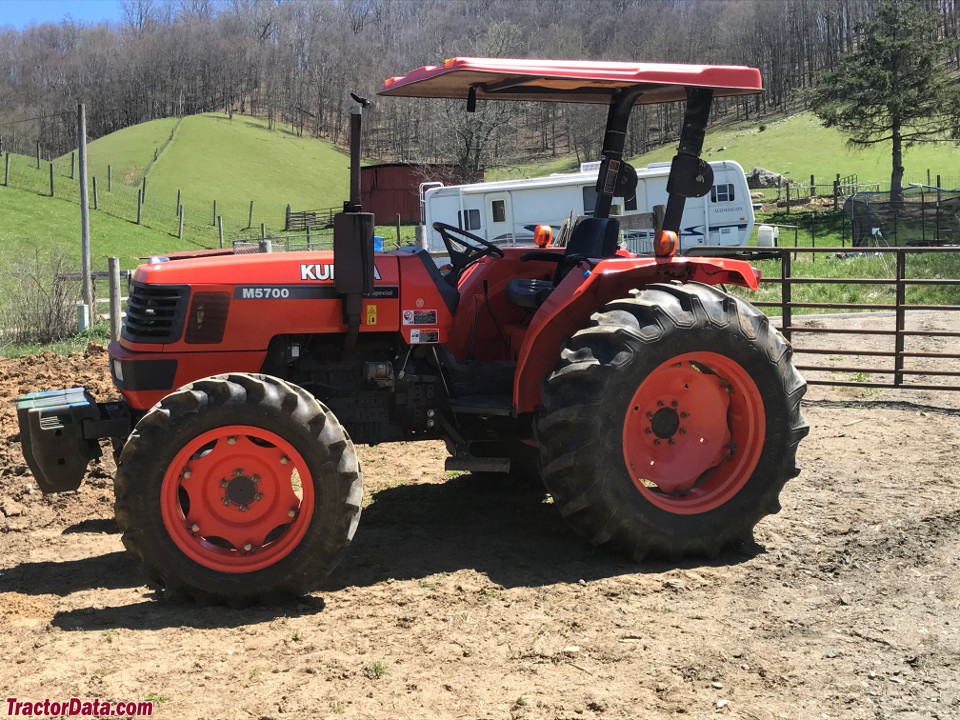

 Kubota M5700 photos... | |
| Capacity | |
| ROPS Fuel | 17.2 gal 65.1 L |
| Cab Fuel | 25.1 gal 95.0 L |
| Hydraulic system | 13.7 gal 51.9 L |
| Hydraulics | |
| Type | open center |
| Capacity | 13.7 gal 51.9 L |
| Valves | 1 to 3 |
| Pump flow | 11 gpm 41.6 lpm |
| Tractor hitch | |
| Rear Type | II/I |
| Control | position control and top-link draft sensing |
| Rear lift (at 24"/610mm) | 2840 lbs*Advertised lift was 3310 pounds but the Kubota M5700 only achieves 2840 pounds during testing. 1288 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 |
| Dimensions & Tires | |
| ROPS Wheelbase | 78.7 inches 199 cm |
| Cab Wheelbase | 81.7 inches 207 cm |
| Weight | 3858 to 4608 pounds |
| Front tire | 7.50-16 |
| Rear tire | 16.9-28 |
 Full dimensions and tires ... | |
| Kubota M5700 attachments | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| ROPS Charging amps | 45 |
| Cab Charging amps | 60 |
| Battery volts | 12 |
| References | |
 | |
| Diesel Tractor M4900/M5700/M6800/M8200/M9000 published in 2003, by Kubota |
