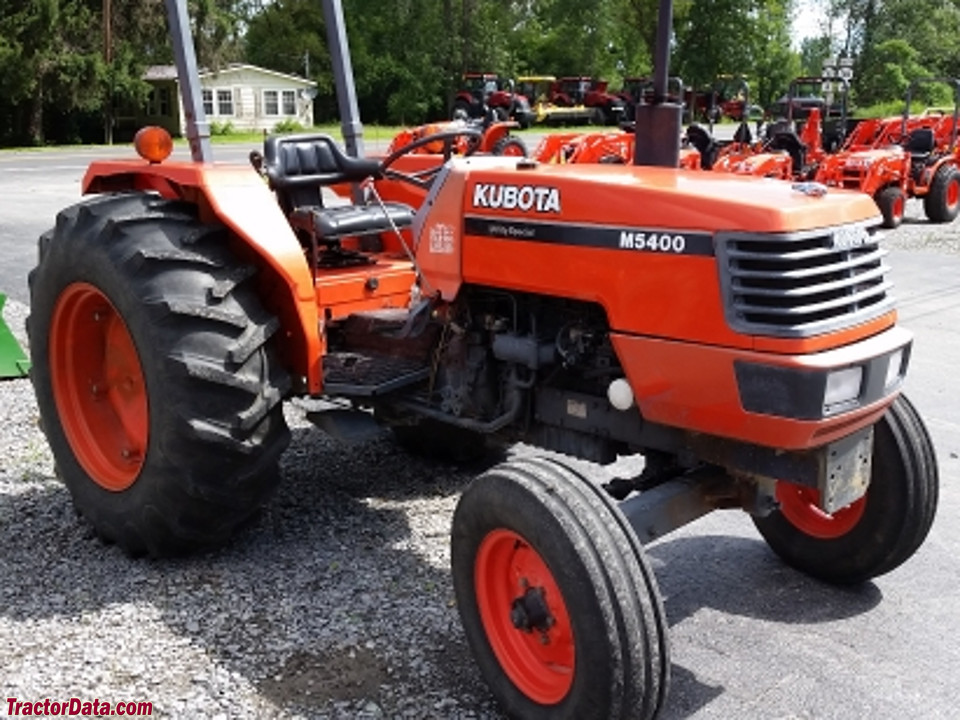

Kubota M5400
| | 1995 - 1999 |
| M Series | | Utility tractor |
|
| Production |
| Manufacturer: | Kubota
|
| Type: | Utility tractor
|
| Variants |
| M5400DT-N: | narrow profile
|
| Kubota M5400 Power |
| Engine (gross): | 58 hp
43.3 kW
|
| Engine (net): | 54 hp
40.3 kW
|
| PTO (claimed): | 50 hp
37.3 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | mechanical wet disc
|
| Cab: | Two-post ROPS
|
| Transmissions: | 8-speed partially synchronized
|
| | 12-speed creeper
|
 Transmission details ... |
| Hydraulics |
| Type: | open center
|
| Valves: | 1
|
| Pump flow: | 11 gpm
41.6 lpm
|
| Tractor hitch |
| Rear Type: | II/I
|
| Control: | position and draft control
|
| Rear lift (at ends): | 4200 lbs
1905 kg
|
| Rear lift (at 24"/610mm): | 3307 lbs
1500 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540 (1.375)
|
| Engine RPM: | 540@2295
|
| Electrical |
| Ground: | negative
|
| Battery CCA: | 615
|
| Battery volts: | 12
|
