Tractors > John Deere > 4710

John Deere 4710 Engine



John Deere 4710 tractor photo
2002 - 2004
4000 Ten Compact Series
Compact Utility tractor
Series map:
4610
4710
42.8hp
46.3hp
Engine Detail
Yanmar 4TNE88
diesel
4-cylinder
liquid-cooled
Displacement133 ci
2.2 L
Bore/Stroke3.456x3.543 inches
88 x 90 mm
Power (gross)46.3 hp
34.5 kW
Air cleanerdry with safety element
Compression18:1
Rated RPM2600
Torque108 lb-ft
146.4 Nm
Torque RPM1700
Starter volts12
Starter power2.7 hp
2.0 kW
Coolant capacity6.8 qts
6.4 L
Engine Oil

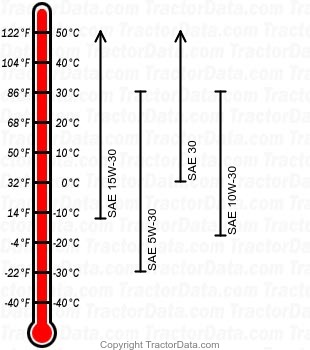

4710 diesel engine oil chart
Oil capacity5.1 qts
4.8 L
