Ford 741

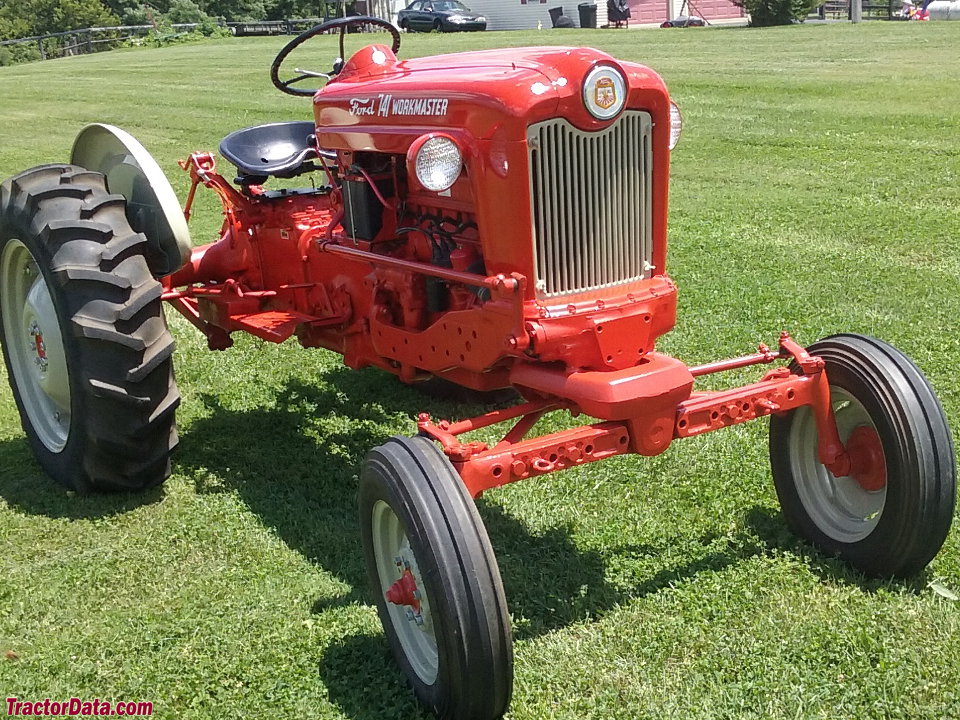

Ford 741 tractor photo
1958 - 1962
701 Workmaster Series
Row-Crop tractor
Series map:
741
771
48.4hp
48.4hp
Production
ManufacturerFord
Row-Crop tractor
Built in Highland Park, Michigan, USA
Variants
771Select-O-Speed
7414-speed
Ford 741 Engines
Ford 2.2L 4-cyl gasoline
Ford 2.2L 4-cyl LP gas
Ford 2.4L 4-cyl diesel
Engine details ...
Ford 741 Power
Engine (gross)48.4 hp
36.1 kW
Belt (claimed)32 hp
23.9 kW
Plows2 (14-inch)
Mechanical
Two-wheel drive
Steeringpower assist
Differential mechanical expanding shoe brakes
Open operator station.
Capacity
Fuel13 gal
49.2 L
Hydraulic system4 gal
15.1 L
Hydraulics
Typeopen center
Capacity4 gal
15.1 L
Tractor hitch
Rear TypeI
Controlposition and draft control
Rear lift1250 lbs
567 kg
Power Take-off (PTO)
Rear PTOtransmission
Rear RPM540 (1.375)
Dimensions & Tires
Wheelbase85.3 inches
216 cm
Weight3400 lbs
1542 kg
Front tire5.50-16
Rear tire11-28
Full dimensions and tires ...
741 Serial Numbers
19571001
195811977
195958312
1960105943
1961131427
1962155531

FAQ: How to read a serial number table.
741 Serial Location
Ford 741 serial number location
The serial number on the Ford 741 is on the left side, behind the starter and on top of the transmission case.
Electrical
Groundpositive (6V)
 negative (12V)
Charging systemgenerator
Charging amps20
Battery volts6 (gas/lp)
 12 (diesel)
Battery AH80 (6V)
 135 (12V)
References
741 references literature
1955-1960 Tractor Shop Manual (SE-8175) published in 1961
Power Up with Ford published in 1957
Diesel Tractors published in 1959, by Ford
New Ford Workmaster Tractors published in 1957
