Ford 741 Engine

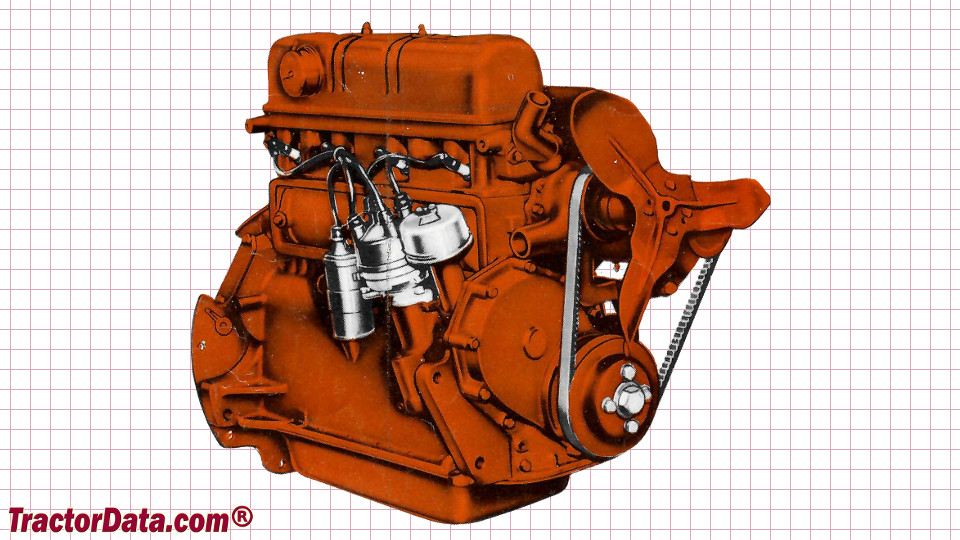

Ford 741 tractor photo
1958 - 1962
701 Workmaster Series
Row-Crop tractor
740
Series:741
Engines overview
Ford 2.2L 4-cyl gasoline
Ford 2.2L 4-cyl LP gas
Ford 2.4L 4-cyl diesel
Engine Detail
Ford EAE Red Tiger
gasoline
4-cylinder 8-valve
liquid-cooled vertical inline
Displacement:134 ci
2.2 L
Bore/Stroke:3.4375x3.60 inches
87 x 91 mm
Emissions:Tier 0
Power:48.4 hp
36.1 kW
Air cleaner:oil bath
Compression:7.5:1
Rated RPM:2200
Torque:126.8 lb-ft
171.9 Nm
Torque RPM:1600
Firing order:1-2-4-3
Starter volts:6
Coolant capacity:15 qts
14.2 L
Sparkplug:14MM
Sparkplug gap:0.025 inches
0.635 mm (min)
 0.028 inches
0.711 mm (max)
Engine Oil

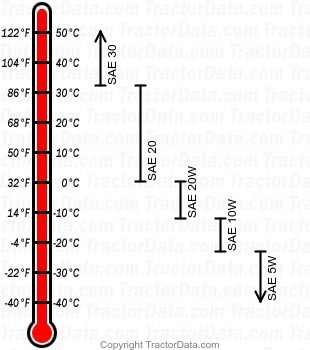

741 gasoline engine oil chart
Oil capacity:5 qts
4.7 L
Oil change:100 h

Engine Detail
Ford
LP gas
4-cylinder
liquid-cooled
Displacement:134 ci
2.2 L
Bore/Stroke:3.4375x3.60 inches
87 x 91 mm
Rated RPM:2200
Firing order:1-2-4-3
Starter volts:6
Engine Detail
Ford
diesel
4-cylinder 8-valve
liquid-cooled
Displacement:144 ci
2.4 L
Bore/Stroke:3.562x3.60 inches
90 x 91 mm
Rated RPM:2200
Firing order:1-2-4-3
Starter volts:12
