Tractors > Ford > 620

Ford 620



Ford 620 tractor photo
1955 - 1957
600 Series
Utility tractor
Series map:
620
33.3hp*
*Estimated engine power for comparison only.
Production
ManufacturerFord
Utility tractor
Built in Highland Park, Michigan, USA
Variants
620no PTO, hydraulics, or 3-point hitch
630no PTO
640four-speed
650five-speed
660five-speed, live PTO
Ford 620 Engines
Ford 2.2L 4-cyl gasoline
Ford 2.2L 4-cyl LP gas
Fuel tank11 gal
41.6 L
Engine details ...
Ford 620 Transmission
4-speed unsynchronized gear
Transmission details ...
Ford 620 Power
Belt (claimed)30 hp
22.4 kW
Plows2 (14-inch)
Mechanical
Two-wheel drive
Steeringmanual
 power assist optional
Differential mechanical expanding shoe brakes
Open operator station.
Photos
No photos of the Ford 620 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Dimensions & Tires
Wheelbase75.2 inches
191 cm
Weight2750 lbs
1247 kg
Front tire5.50-16
Rear tire10-28
Full dimensions and tires ...

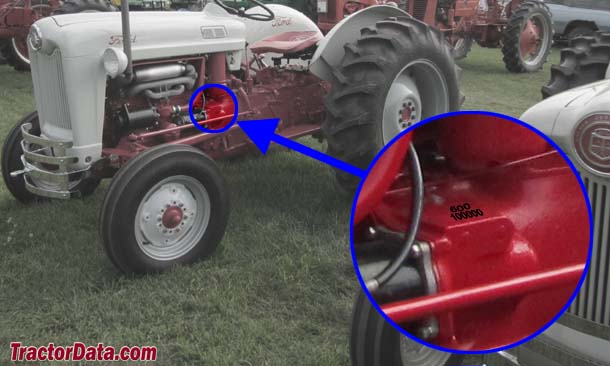

620 Serial Number Location
Ford 620 serial number location
On the left-hand side of the transmission housing behind the starter.
620 Serial Numbers
19541
195510615
195677271
1957116368

FAQ: How to read a serial number table.
Electrical
Groundpositive
Charging systemgenerator
Charging amps20
Battery volts6
References
620 references literature
Owner's Manual Series 600 and 800 (SE6085) published in 1956
Accessories and special items for your Ford tracotr published in 1958
1955-1960 Tractor Shop Manual (SE-8175) published in 1961
New 600 Model Ford Tractor published in 1954
