Tractors > Ford > 621

Ford 621



Ford 621 tractor photo
1957 - 1962
601 Workmaster Series
Utility tractor
Series map:
621
48.4hp
Production
ManufacturerFord
Utility tractor
Built in Highland Park, Michigan, USA
Original price was $3,222 in 1961
Variants
611Select-O-Speed, no PTO
621Four-speed, no PTO or 3-point
631Four-speed, no PTO
641Four-speed
651Five-speed
661Five-speed, live PTO
671Select-O-Speed
681Select-O-Speed, dual-speed PTO
Ford 621 Engines
Ford 2.2L 4-cyl gasoline
Ford 2.4L 4-cyl diesel
Ford 2.2L 4-cyl LP gas
Engine details ...
Ford 621 Transmissions
5-speed gear
12-speed unsynchronized gear
Transmission details ...
Ford 621 Power
Engine (gross)48.4 hp
36.1 kW
Belt (claimed)32 hp
23.9 kW
Plows2 (14-inch)
Mechanical
Two-wheel drive
Steeringmanual
 power assist optional
Differential mechanical expanding shoe brakes
Open operator station.
Photos
No photos of the Ford 621 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel13 gal
49.2 L
Rear axle8 qts
7.6 L
Dimensions & Tires
Weight3321 lbs
1506 kg
Front tire5.50-16
Rear tire10-28
Full dimensions and tires ...
621 Serial Number Location
Ford 621 serial number location
Transmission case, top left, behind the starter.
621 Serial Numbers
19571001
195811977
195958312
1960105943
1961131427
1962155531

FAQ: How to read a serial number table.
Electrical
Groundpositive (6V)
 negative (12V)
Charging systemgenerator
Charging amps20
Battery volts6 (gas/lp)
 12 (diesel)
Battery AH80 (6V)
 135 (12V)
References
621 references literature
Tractors For Industrial Use published in 1958, by Ford
Power Up with Ford published in 1957
Diesel Tractors published in 1959, by Ford
New Ford 601 Series Workmaster Tractors published in 1957
New Ford Workmaster Tractors published in 1957

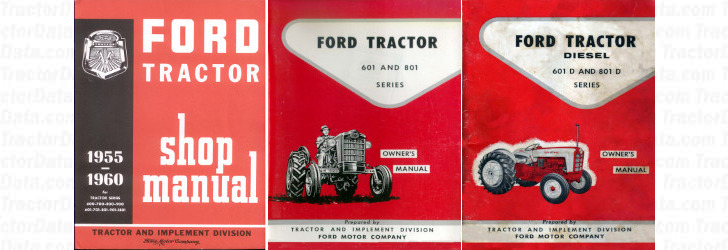

621 manuals literature
1955-1960 Tractor Shop Manual (SE-8175) published in 1961
Owner's Manual Series 601 and 801 (SE6085C) published in 1957
Owner's Manual Series 601 D and 801 D (SE6970A) published in 1959
