CaseIH STX425 Engine
|
|
| Engine Detail | |

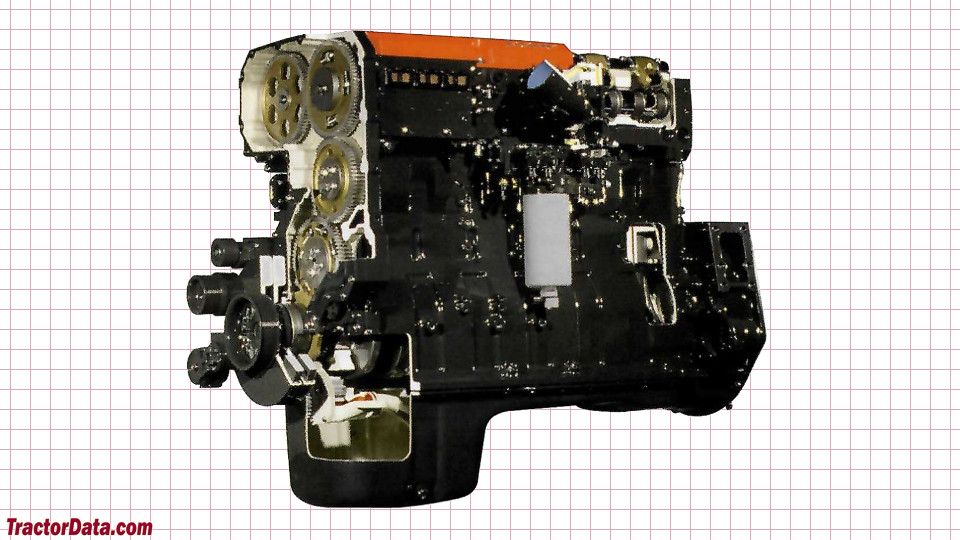

| Cummins QSX 15 | |
| turbocharged aftercooled diesel | |
| 6-cylinder | |
| liquid-cooled inline | |
| When equipped with the manual transmission the STX425 engine is limited to 1501 lb-ft of torque. | |
| Displacement | 912 ci 14.9 L |
| Bore/Stroke | 5.39x6.65 inches 137 x 169 mm |
| Power | 425 hp 316.9 kW |
| Air cleaner | dual paper elements |
| Rated RPM | 2000 |
| Torque | 1594 lb-ft 2161.5 Nm |
| Torque RPM | 1400 |
| Starter volts | 12 |
| CaseIH STX425 Engine | |
 |
