CaseIH JX1100U Tests


CaseIH JX1100U tractor photo
2004 - 2008
JXU Maxxima Series
Utility tractor
JX100U
Series:JX1090UJX1100U
Farmall 105U
OCED Tractor Test 2278

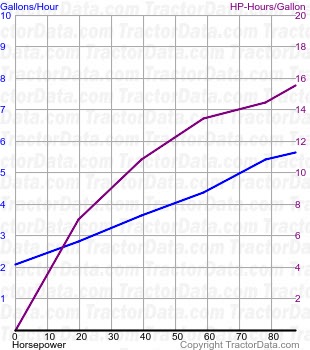

JX1100U fuel use from test 531
OCED Tractor Test 2278
Diesel 12-speed 4WD
September 1 - 30, 2004
Link: OCED Tractor Test 2278 file
PTO performance
Power at rated engine speed:87.3 hp
65.1 kW
Fuel use:5.6 gal/hour
21.2 l/hour
Power at rated PTO speed:88.1 hp
65.7 kW
Fuel use:5.5 gal/hour
20.8 l/hour
Drawbar performance
Max power:70.4 hp
52.5 kW
Fuel use:5.5 gal/hour
20.8 l/hour
Gear 2-II used for power test.
Max pull:10,125 lbs
4592 kg
Gear 2-I used for pull test.
