Tractors > John Deere > 5425

John Deere 5425 Engine



John Deere 5425 tractor photo
2005 - 2008
5025 Series
Utility tractor
Series map:
5325
5425
5525
67.0hp
81.0hp
91.0hp
Engine Detail
John Deere 4045D
turbocharged diesel
4-cylinder
liquid-cooled
Displacement276 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
EmissionsTier II
Power (gross)81 hp
60.4 kW
Air cleanerpaper and felt elements
Compression17.0:1
Rated RPM2400
Idle RPM825-2625
Operating RPM1600-2400
Torque215.1 lb-ft
291.7 Nm
Firing order1-3-4-2
Starter volts12
Coolant capacity12 qts
11.4 L
Engine Oil

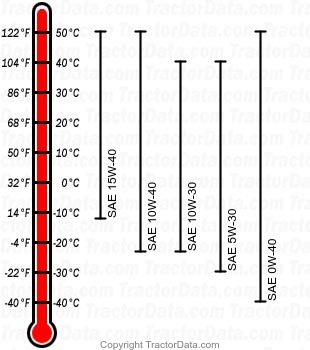

5425 diesel engine oil chart
Oil capacity9 qts
8.5 L
