John Deere 5525 Engine


John Deere 5525 tractor photo
2005 - 2008
5025 Series
Utility tractor
Series:542555255625
5095M
Engine Detail
John Deere
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:276 ci
4.5 L
Bore/Stroke:4.19x5.00 inches
106 x 127 mm
Power (gross):91 hp
67.9 kW
Air cleaner:paper and felt elements
Compression:17.6:1
Rated RPM:2400
Idle RPM:825-2625
Firing order:1-3-4-2
Starter volts:12
Coolant capacity:12 qts
11.4 L
Engine Oil

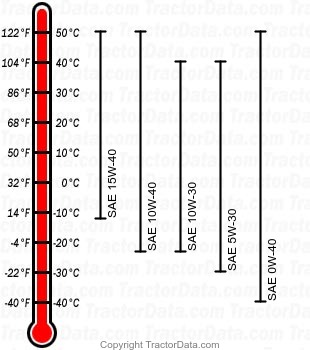

5525 diesel engine oil chart
Oil capacity:9 qts
8.5 L
