John Deere 4100 Transmission


John Deere 4100 tractor photo
1998 - 2001
4000 Compact Series
Compact Utility tractor
Series map:
4100
4200
20.0hp
26.3hp
Transmission options
8-speed partially synchronized
hydrostatic
Transmission
Typepartially synchronized
Gears8 forward and 4 reverse
Oil capacity9.2 qts
8.7 L
Four speeds with high, low, and reverse ranges. Gear shifts can be made while in motion using the clutch. Tractor must be stopped to shift ranges.
Speeds
With 9.5-16 rear tires.

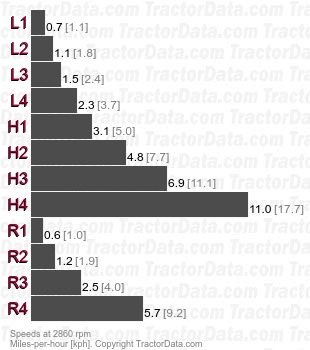

4100  partially synchronized speeds
Transmission
Typehydrostatic
Gearsinfinite forward and reverse (2-range)
Oil capacity13.2 qts
12.5 L
Two-range hydrostatic with foot pedals and cruise control. Tractor must be stopped to shift ranges.
Speeds
With 9.5-16 rear tires.

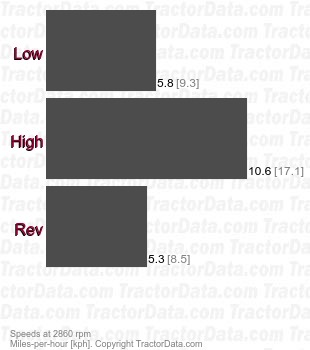

4100  hydrostatic speeds
Shift Pattern
John Deere 4100 transmission controls
