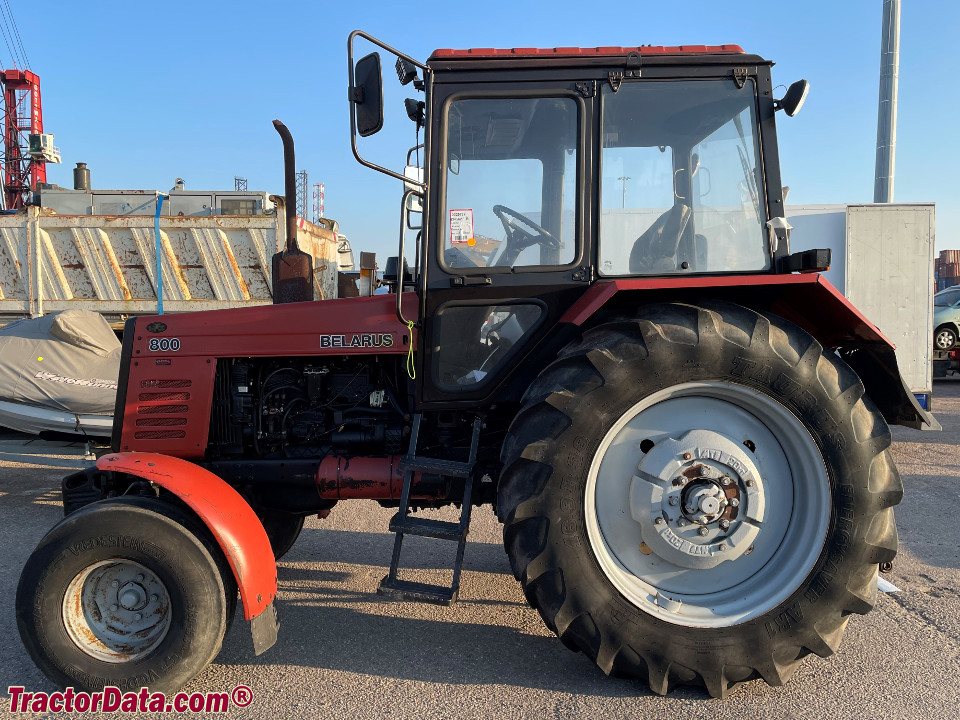

Belarus 800
Series map:
800
820
85.0hp
85.0hp
| Production |
| Manufacturer | Belarus
|
| Built in Minsk, Belarus |
| Original price was $18,000 in 1994 |
| Steve Roberts |
| Belarus 800 Power |
| Engine | 85 hp
63.4 kW
|
| PTO (claimed) | 74.8 hp
55.8 kW
|
| Mechanical |
| Two-wheel drive |
| Final drives | spur gear
|
| Differential lock | mechanical rear
|
| Power steering |
| Disc brakes |
| Capacity |
| Fuel | 34.3 gal
129.8 L
|
| Hydraulic system | 5.4 gal
20.4 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 5.4 gal
20.4 L
|
| Pressure | 2274 psi
156.8 bar
|
| Valves | 2
|
| Pump flow | 11.8 gpm
44.7 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Control | position and draft control
|
| Rear lift (at ends) | 4400 lbs
1995 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540/1000 (1.375)
|
| Engine RPM | 540@2068
|
| | 1000@2158
|
| Electrical |
| Charging system | alternator
|
| Battery volts | 12
|
| References |
 |
| Operators Manual 500 Series, 800 Series and 900 Series Tractors (904805) published in 1992 |
| Belarus 800/820 published in 1988 |
