John Deere 9320T Tests


John Deere 9320T tractor photo
2002 - 2007
9020 Series
Agricultural Crawler tractor
9300T
Series:9320T9420T
OCED Tractor Test 1804

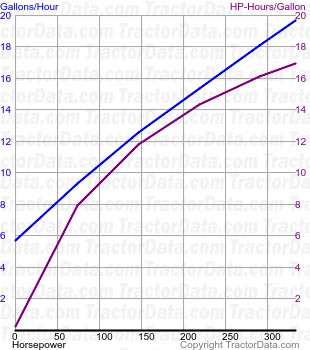

9320T fuel use from test 370
OCED Tractor Test 1804
Diesel 18-speed crawler
April 5 - May 31, 2002
Link: OCED Tractor Test 1804 file
PTO performance
Max power:389.14 hp
290.2 kW
Fuel use:22.1 gal/hour
83.6 l/hour
Power at rated engine speed:389.14 hp
290.2 kW
Fuel use:23.0 gal/hour
87.1 l/hour
Power at rated PTO speed:358.95 hp
267.7 kW
Fuel use:20.3 gal/hour
76.8 l/hour
Drawbar performance
Max power:305.74 hp
228.0 kW
Fuel use:19.7 gal/hour
74.6 l/hour
Gear 7 used for power test.
Max pull:41,473 lbs
18812 kg
Gear 1 used for pull test.
