Versatile 935
|
|
| Production | |
| Manufacturer | Versatile |
| Four-wheel Drive (4WD) tractor | |
| Built in Winnipeg, Manitoba, Canada | |
| Original price was $112,700 in 1982 | |
| Versatile 935 Engine | |
| Cummins 14.8L 8-cyl diesel | |
| Fuel tank | 185 gal 700.2 L |
 Engine details ... | |
| Versatile 935 Transmission | |
| 12-speed gear | |
 Transmission details ... |
| Versatile 935 Power | |
| Engine | 330 hp 246.1 kW |
| Mechanical | |
| Four-wheel drive | |
| Final drives | outboard planetary |
| Articulated power steering | |
| Hydraulic disc brakes | |
| Cab standard with air-conditioning. | |

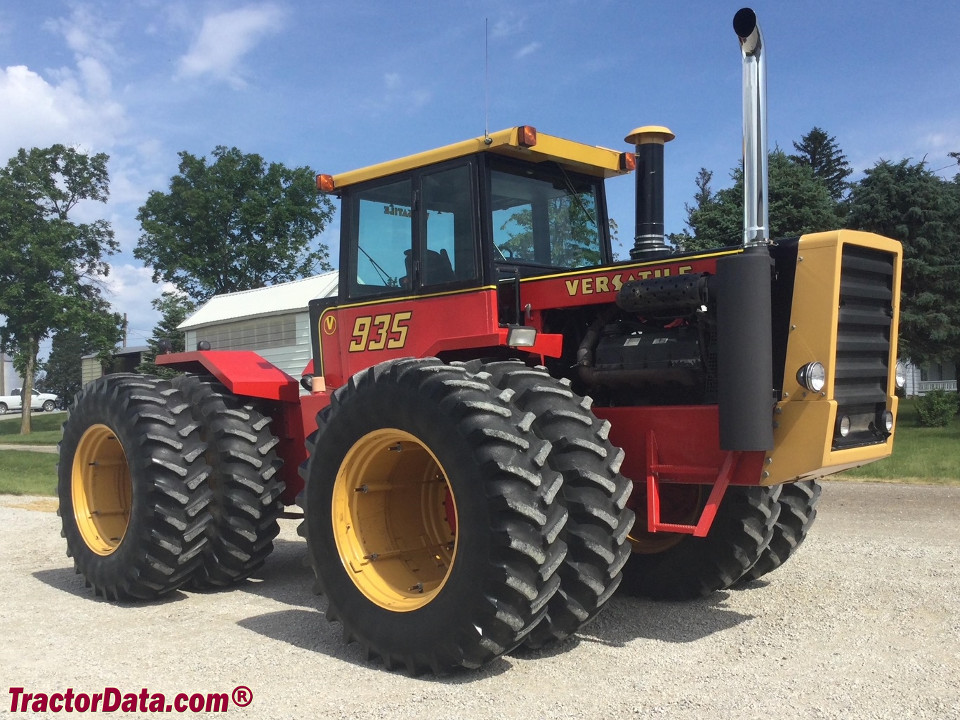

| Photos | |
 | |
 Versatile 935 photos... | |
| Hydraulics | |
| Type | open center |
| Valves | 4 |
| Pump flow | 24.6 gpm 93.1 lpm |
| Steering flow | 29.2 gpm 110.5 lpm |
| Tractor hitch | |
| Rear Type | III OptOptional |
| Control | position and depth control |
| Rear lift (at ends) | 18270 lbs 8287 kg |
| Rear lift (at 24"/610mm) | 12370 lbs 5611 kg |
| Dimensions & Tires | |
| Wheelbase | 130 inches 330 cm |
| Weight | 20000 lbs 9072 kg |
| Front tire | 20.8-38 |
| Rear tire | 20.8-38 |
 Full dimensions and tires ... | |
| 935 Serial Numbers | |
| Location: | Serial number plate on the cab door post. |
| 1978 | 935 78 071700 |
| 1979 | 935 79 071901 |
| 1980 | 935 80 072101 |
| 1981 | 935 81 072451 |
| 1982 | 935 82 072701 |
| Final | 935 82 072839 |
FAQ: How to read a serial number table. | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 75 |
| Batteries | 2 |
| Battery CCA | 900 |
| Battery volts | 12 |
| Battery Group | 80 |
| References | |
 | |
| Constant Power published in 1979, by Versatile | |
| Large Tractor Service Manual (PU4020) published in 1980 |
