Versatile 935 Engine



Versatile 935 tractor photo
1978 - 1982
3 Series
Four-wheel Drive (4WD) tractor
Series map:
935
330.0hp
Engine Detail
Cummins VT-903-C330
turbocharged diesel
8-cylinder
liquid-cooled V8
Displacement903 ci
14.8 L
Bore/Stroke5.50x4.75 inches
140 x 121 mm
Power330 hp
246.1 kW
Air cleanerdual dry element with precleaner
Compression15.5:1
Rated RPM2400
Idle RPM1000-2910
Torque848 lb-ft
1149.9 Nm
Torque RPM1800
Starterelectric
Starter volts12
Coolant capacity54 qts
51.1 L
Engine Oil

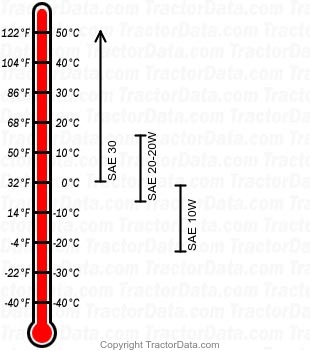

935 diesel engine oil chart
Oil capacity26 qts
24.6 L
