Versatile 276


Versatile 276 tractor photo
1985 - 1990
200 Series
Series map:
276
116.7hp
Production
ManufacturerVersatile
Built in Winnipeg, Manitoba, Canada
Original price was $48,000 in 1990
The Versatile 276 is a "Bidirectional" tractor in which the operator console rotates 180-degrees to allow the tractor to be operated in either direction. The 276 was available with both front and rear, drawbars, 3-point-lift, and PTOs.
Versatile 276 Engine
Cummins 3.9L 4-cyl diesel
Engine details ...
Versatile 276 Power
Engine116.7 hp
87.0 kW
PTO (claimed)100.6 hp
75.0 kW
Mechanical
Four-wheel drive
Steeringhydrostatic power
Hydraulic disc brakes
Cab standard with 180-degree console rotation.
Capacity
Fuel39 gal
147.6 L
Hydraulic system8.5 gal
32.2 L
Hydraulics
Typeclosed center load sensing
Capacity8.5 gal
32.2 L
Pressure2800 psi
193.1 bar
Rear valves3
Front valves2 OptOptional
Pump flow23 gpm
87.1 lpm
Steering flow4.8 gpm
18.2 lpm
Steering press.2300 psi
158.6 bar
Tractor hitch
Rear TypeII/I OptOptional
Controlposition control
Rear lift (at 24"/610mm)4400 lbs
1995 kg
Front HitchII/I OptOptional
Front lift (at ends)3266 lbs
1481 kg
Front lift (at 24"/610mm)2000 lbs
907 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchwet disc
Rear PTO Type540/1000 (1.375)
Engine RPM540@2500
 1000@2500
Front PTOoptional
Front PTO Type540/1000 (1.375)
Dimensions & Tires
Wheelbase86 inches
218 cm
Weight8700 to 11650 pounds
Front tire14.9-28
Rear tire14.9-28
Full dimensions and tires ...
276 Serial Numbers
Location:Serial number plate on the operator console.
1985241025
1986273100
1987------
1988332100
1989432100
1990453100
Final453972

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps72
Batteries2
Battery volts12
References

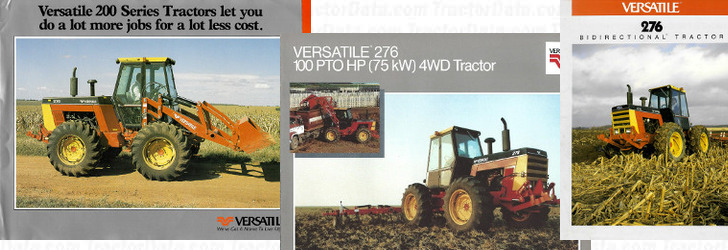

276 references literature
200 Series published by Versatile
276 100 PTO 4WD Tractor published in 1984, by Versatile
276 Bidirectional Tractor published in 1987, by Versatile
