Kubota L3600 Transmission
|
|
| Transmissions overview | |
| 8-speed synchronized shuttle | |
| 8-speed power shuttle |
| Transmission | |
| Transmission | FST |
| Type | synchronized shuttle |
| Gears | 8 forward and reverse |
| Clutch | dry disc |
| Oil capacity | 41.2 qts 39.0 L |
| Four gears (1-4) in two ranges (low/high) with left-hand shuttle lever. Gear shifts (1-4) are synchronized using the foot clutch. Shuttle shifting is also synchronized using the clutch. The tractor must be stopped, and clutch used, to shift ranges. | |

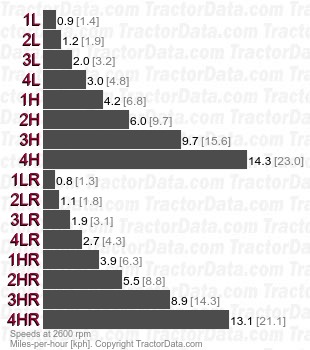

| Speeds | |
| With 16.6-24 rear tires. | |
|
| Transmission | |
| Transmission | Glide Shift (GST) |
| Type | power shuttle |
| Gears | 8 forward and reverse |
| Clutch | dry disc |
| Oil capacity | 41.2 qts 39.0 L |
| Eight-speed gear shift (1-8) with left-hand shuttle lever. Power shuttle shifting without need for the clutch. The transmission can be shifted (without the clutch) by sequentially shifting up through the gears. | |

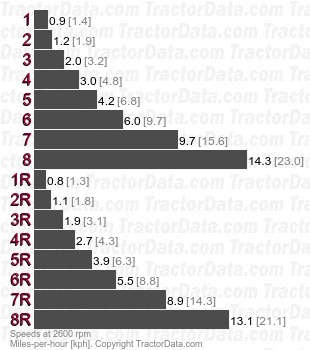

| Speeds | |
| With 16.6-24 rear tires. | |
|

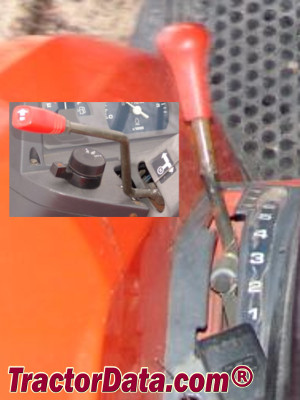

| Shift Pattern | |
 |
