Tractors > Kubota > L3710

Kubota L3710 Transmission



Kubota L3710 tractor photo
1998 - 2002
Grand L10 Series
Compact Utility tractor
L3600 ↑
Series:L3410 ← L3710 → L4310
L3830 ↓
Transmissions overview
8-speed mechanical shuttle
hydrostatic
8-speed automatic fully synchronized
16-speed creeper
Transmission
Transmission:FST
Type:mechanical shuttle
Gears:8 forward and reverse
Clutch:dry disc
Four synchronized gears in two ranges. Synchronized shuttle shifting.
Speeds

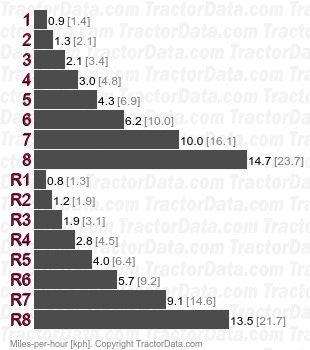

L3710 FST mechanical shuttle speeds
Transmission
Type:hydrostatic
Gears:infinite (3-range) forward and reverse
Speeds

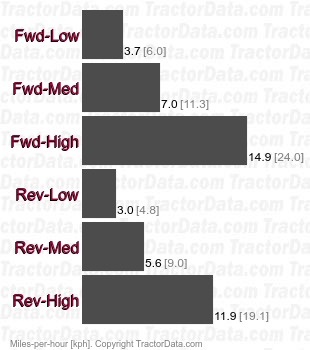

L3710 hydrostatic speeds
Transmission
Transmission:Glide Shift (GST)
Type:automatic fully synchronized
Gears:8 forward and reverse
Clutch:dry disc
The Glide Shift allows clutchless automatic shifting between gears.
Speeds
L3710 Glide Shift (GST) automatic fully synchronized speeds
Transmission
Type:creeper
Gears:16 forward and reverse
Optional creeper range available for the FST or GST transmission.
Speeds

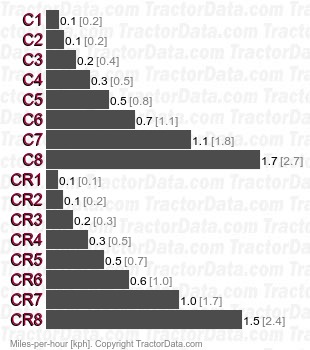

L3710 creeper speeds
