Kubota L3600 Engine


Kubota L3600 tractor photo
1994 - 1999
Grand L Series
Compact Utility tractor
L3650
Series:L3300L3600L4200
L3710
Engine Detail
Kubota V1903
diesel
4-cylinder
liquid-cooled
Displacement:113.3 ci
1.9 L
Bore/Stroke:3.1x3.6 inches
79 x 91 mm
Power (gross):38.5 hp
28.7 kW
Fuel system:indirect injection
Rated RPM:2600
Torque:88.7 lb-ft
120.3 Nm
Starter volts:12
Coolant capacity:7.9 qts
7.5 L
Engine Oil

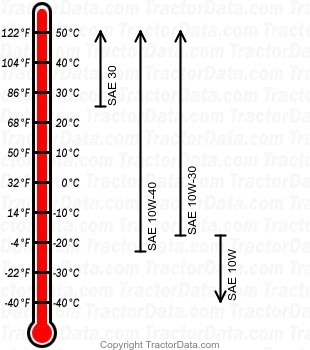

L3600 diesel engine oil chart
Oil capacity:6.3 qts
6.0 L
Oil change:100 h
