Kubota L3300 Engine


Kubota L3300 tractor photo
1994 - 1999
Grand L Series
Compact Utility tractor
L3450
Series:L2900L3300L3600
L3410
Engine Detail
Kubota D1703
diesel
3-cylinder
liquid-cooled
Displacement:100.5 ci
1.6 L
Bore/Stroke:3.4x3.6 inches
86 x 91 mm
Power (gross):35.1 hp
26.2 kW
Fuel system:indirect injection
Rated RPM:2700
Torque:77.9 lb-ft
105.6 Nm
Starter volts:12
Coolant capacity:7.4 qts
7.0 L
Engine Oil

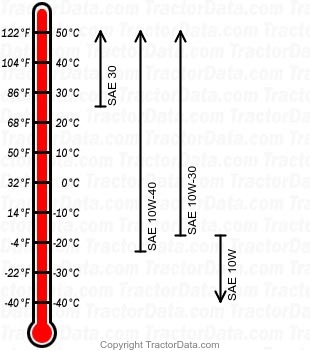

L3300 diesel engine oil chart
Oil capacity:3.7 qts
3.5 L
Oil change:100 h
