Tractors > Kubota > L3410

Kubota L3410 - transmission

Kubota L3410 tractor photo
1998 - 2002   Grand L10 Series
Compact Utility tractor
Previous model:Kubota L3300
Next model:Kubota L3430
Series next:Kubota L3710
Series back:Kubota L3010
more Kubota L3410 specifications...






Transmission:

Transmission:FST
Type:mechanical shuttle
Gears:8 forward and reverse
Clutch:dry disc
Four synchronized gears in two ranges. Synchronized shuttle shifting.
Speeds:
L3410 FST mechanical shuttle speeds


Transmission:

Type:hydrostatic
Gears:infinite (3-range) forward and reverse
Speeds:
L3410  hydrostatic speeds


Transmission:

Transmission:Glide Shift (GST)
Type:automatic fully synchronized
Gears:8 forward and reverse
Clutch:dry disc
The Glide Shift allows clutchless automatic shifting between gears.
Speeds:
L3410 Glide Shift (GST) automatic fully synchronized speeds


Transmission:

Type:creeper
Gears:16 forward and reverse
Optional creeper range available for the FST or GST transmission.
Speeds:

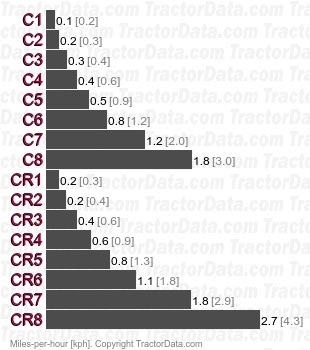

L3410  creeper speeds
