CaseIH 9330 Tests

CaseIH 9330 tractor photo
1996 - 1999
9300 Series
Four-wheel Drive (4WD) tractor
OCED Tractor Test 1713

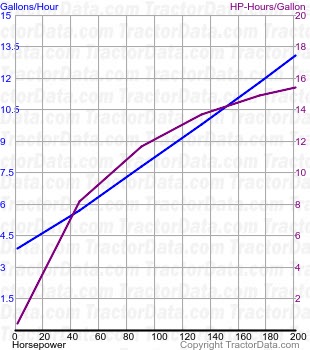

9330 fuel use from test 208
OCED Tractor Test 1713
Diesel 12-speed 4WD
May 29 - June 4, 1996
Link: OCED Tractor Test 1713 file
PTO performance
Max power:229.96 hp
171.5 kW
Fuel use:13.3 gal/hour
50.3 l/hour
Power at rated engine speed:200.85 hp
149.8 kW
Fuel use:13.0 gal/hour
49.2 l/hour
Power at rated PTO speed:217.03 hp
161.8 kW
Fuel use:13.4 gal/hour
50.7 l/hour
Drawbar performance
Max power:185.88 hp
138.6 kW
Fuel use:12.9 gal/hour
48.8 l/hour
Gear 5 used for power test.
Max pull:25,802 lbs
11703 kg
Gear 2 used for pull test.
