CaseIH 9230 Transmission

CaseIH 9230 tractor photo
1990 - 1995
9200 Series
Four-wheel Drive (4WD) tractor
Type:full power shift
Gears:12 forward and 3 reverse
Clutch:hydraulic wet disc
Full power shift transmission operated with two right-hand levers; one for shifting gears and the other for forward/reverse. Skip-Shift feature allows the transmission to quickly shift from first into higher gears (4th, 6th, 8th).
With 18.4x38 tires.

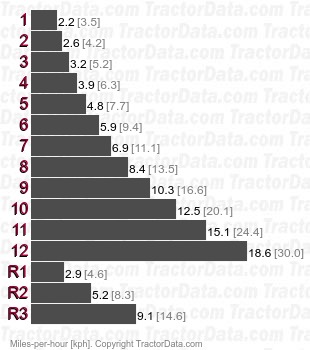

9230  full power shift speeds
CaseIH 9230  transmission photo
