CaseIH 9210 Transmission

CaseIH 9210 tractor photo
1990 - 1995
9200 Series
Four-wheel Drive (4WD) tractor
Series map:
Typefull power shift
Gears12 forward and 3 reverse
Full power shift transmission operated with two right-hand levers; one for shifting gears and the other for forward/reverse. Skip-Shift feature allows the transmission to quickly shift from first into higher gears (4th, 6th, 8th).
With 18.4x38 tires.

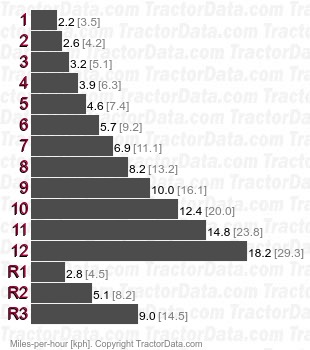

9210  full power shift speeds
Shift Pattern
CaseIH 9210 transmission controls
