CaseIH 9110 Transmission


CaseIH 9110 tractor photo
1986 - 1990
9100 Series
Four-wheel Drive (4WD) tractor
Series map:
9110
9130
190.0hp
220.0hp
Transmission
Typefull power shift
Gears12 forward and 2 reverse
Clutchhydraulic wet disc

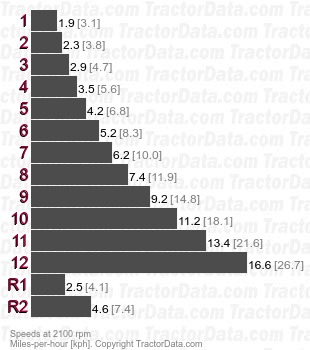

Speeds
With 18.4x38 tires.
9110  full power shift speeds
Shift Pattern
CaseIH 9110 transmission controls
