CaseIH 5130 Maxxum

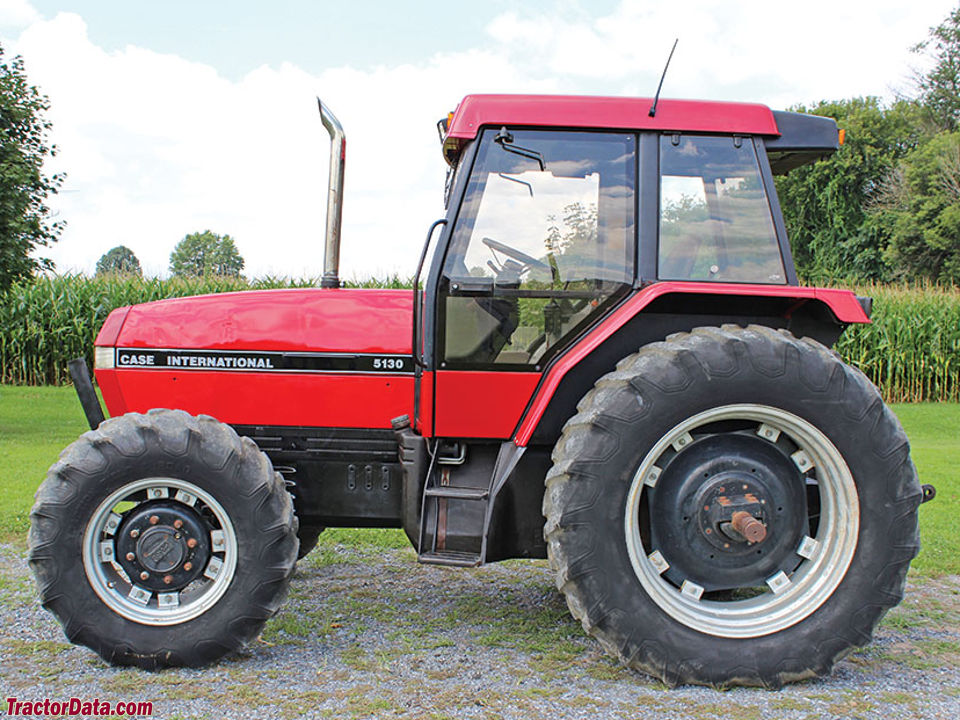

CaseIH 5130 Maxxum tractor photo
1990 - 1991
Maxxum Series
Utility tractor
Series:51205130 Maxxum5140
5230
Production
Manufacturer:CaseIH
Type:Utility tractor
Factory:Neuss, Germany
Original price:$31,000 (1991 )
CaseIH 5130 Power
Engine:99 hp
73.8 kW
PTO (claimed):86 hp
64.1 kW
CaseIH 5130 Engine
CDC 5.9L 6-cyl diesel
Fuel tank:35.7 gal
135.1 L
 45 gal
170.3 L *Optional
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:electrically activated
Steering:power
Brakes:hydraulic wet disc
Cab:Flat-deck platform with two-post fixed ROPS. Optional canopy or foldable ROPS. Cab optional with air-conditioning.
Transmissions:16-speed fully synchronized
 16-speed partial power shift
 24-speed creeper
Transmission details ...
Hydraulics
Type:closed center pressure flow compensated
Pressure:2600 psi
179.3 bar
Valves:1 to 4
Total flow:20.1 gpm
76.1 lpm
Tractor hitch
Rear Type:II
Control:lower link
Rear lift (at 24"/610mm):7700 lbs
3492 kg
Front Hitch:II*Optional
Front lift (at 24"/610mm):5200 lbs
2358 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:hydraulic wet disc
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:103.7 inches
263 cm (2WD)
 101.8 inches
258 cm (4WD)
Weight:9458 to 10582 pounds
Front tire:10.00-16
Rear tire:16.9-38 (2WD)
Full dimensions and tires ...
5130 Serial Numbers
Location:Inside cab on left
1990:JJF1000001
1991:JJF1006114

how to read serial numbers...

Electrical
Ground:negative
Charging system:alternator
Charging amps:65
Battery volts:12
