| | 1990 - 1991 |
| Maxxum Series | | Utility tractor |
|
Series map:
5120
5130
5140
88.0hp
99.0hp
108.5hp
| Engine Detail |
| CDC |
| diesel |
| 6-cylinder |
| liquid-cooled |
| Displacement | 359 ci
5.9 L
|
| Bore/Stroke | 4.02x4.72 inches
102 x 120 mm
|
| Power | 99 hp
73.8 kW
|
| Air cleaner | dry
|
| Rated RPM | 2200
|
| Idle RPM | 850-2355
|
| Starter volts | 12
|
| Oil change | 250 h
|
| Coolant change | 250 h
|

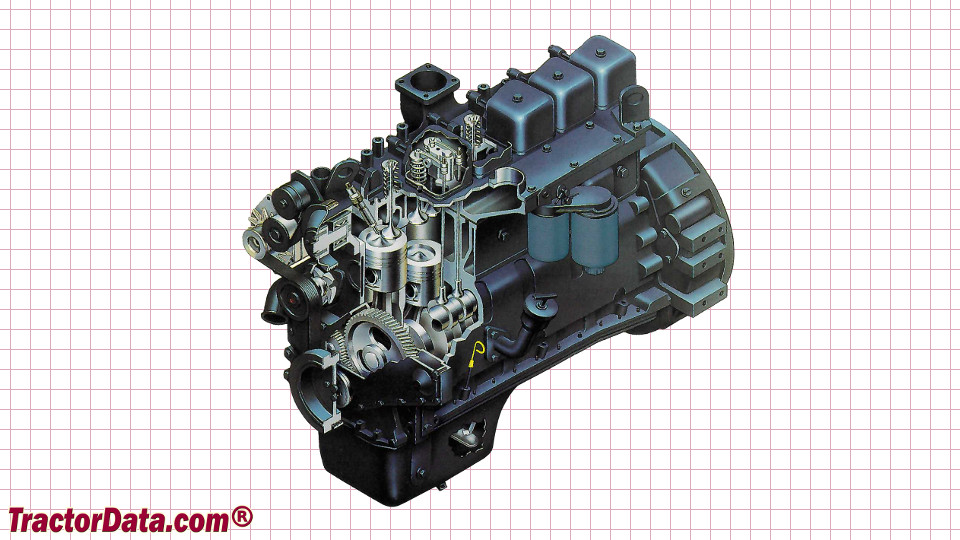

| CaseIH 5130 Engine |
 |
