Tractors > CaseIH > MX240 Magnum

CaseIH MX240 Magnum Tests



CaseIH MX240 Magnum tractor photo
1999 - 2002
Magnum Series
Row-Crop tractor
Series map:
MX220
MX240
MX270
205.6hp*
227.8hp*
261.1hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1760

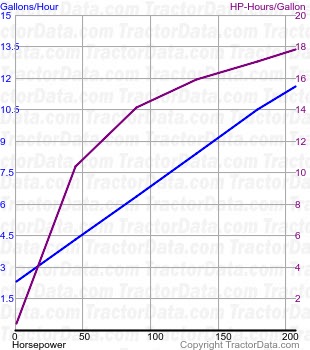

MX240 Magnum fuel use from test 1760
Nebraska Tractor Test 1760
Diesel 18-speed 4WD
April 13 - 24, 1999
Link: Nebraska Tractor Test 1760 file
PTO performance
Max power235.15 hp
175.4 kW
Fuel use12.7 gal/hour
48.1 l/hour
Power at rated engine speed206.72 hp
154.2 kW
Fuel use11.6 gal/hour
43.9 l/hour
Power at rated PTO speed213.36 hp
159.1 kW
Fuel use11.8 gal/hour
44.7 l/hour
Drawbar performance
Max power178.57 hp
133.2 kW
Fuel use11.6 gal/hour
43.9 l/hour
Gear 15.35 used for power test.
Max pull20928 lbs
9492 kg
Gear 5 used for pull test.
