CaseIH MX120 Maxxum Engine


CaseIH MX120 Maxxum tractor photo
1997 - 2002
Maxxum Series
Series map:
MX110
MX120
MX135
110.0hp
120.0hp
135.0hp
Engine Detail
Cummins/CDC
turbocharged diesel
6-cylinder 12-valve
liquid-cooled inline
Displacement359 ci
5.9 L
Bore/Stroke4.016x4.724 inches
102 x 120 mm
Power120 hp
89.5 kW
Fuel systemdirect injection with mechanical governor, Bosch in-line A pump with Bosch 5-hole injectors
Air cleanerdual-element dry
Compression17.5:1
Rated RPM2200
Starter volts12
Oil capacity15.8 qts
15.0 L
ROPS Coolant capacity19.5 qts
18.5 L
Cab Coolant capacity21 qts
19.9 L

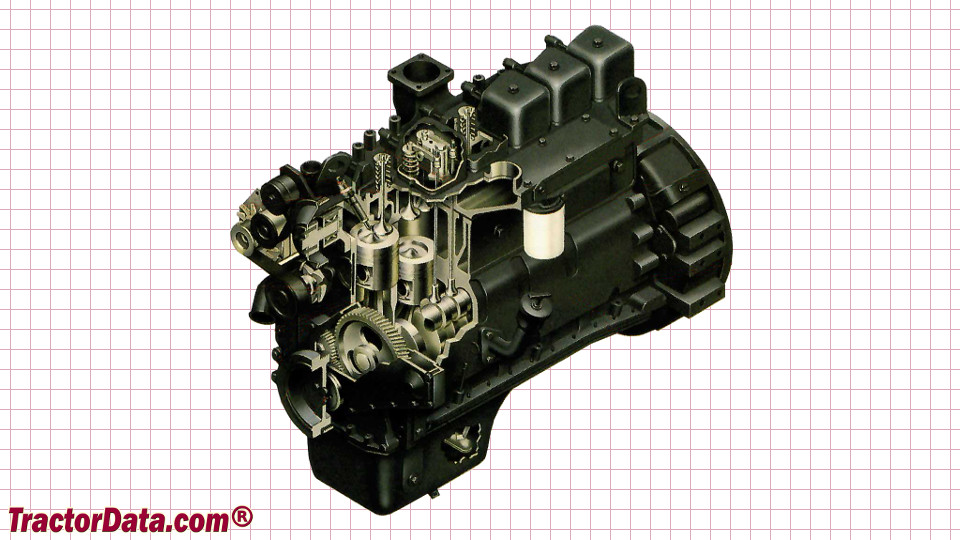

CaseIH MX120 Engine
CaseIH MX120 engine image
