CaseIH MX120 Maxxum Transmission


CaseIH MX120 Maxxum tractor photo
1997 - 2002
Maxxum Series
5240
Series:MX110MX120 MaxxumMX135
Transmissions overview
16-speed synchromesh
16-speed partial power shift
32-speed creeper
Transmission
Type:synchromesh
Gears:16 forward and 12 reverse
Clutch:wet disc
Four gears in four ranges. Three reverse ranges. Ranges and gears fully synchronized.

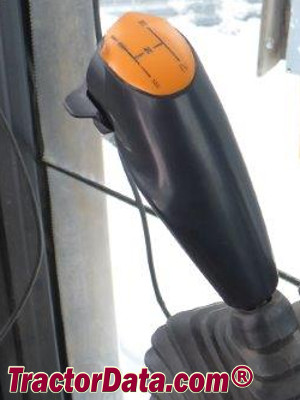

CaseIH MX120 Maxxum  transmission photo
Transmission
Type:partial power shift
Gears:16 forward and 12 reverse
Clutch:wet disc
Four power shift gears in four synchronized ranges. Three ranges in reverse.

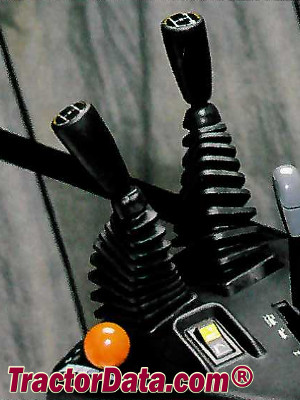

CaseIH MX120 Maxxum  transmission photo
Transmission
Type:creeper
Gears:32 forward and 24 reverse
