CaseIH MX135 Maxxum Engine


CaseIH MX135 Maxxum tractor photo
1997 - 2002
Maxxum Series
5250
Series:MX120MX135 MaxxumMX150
MXM130

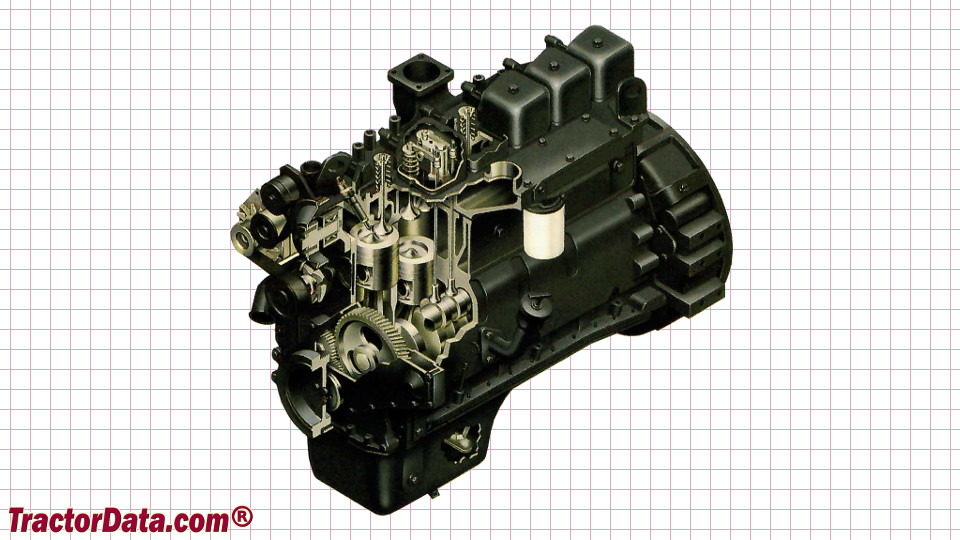

Engine Detail
Cummins/CDC
turbocharged diesel
6-cylinder 12-valve
liquid-cooled inline
Displacement:359 ci
5.9 L
Bore/Stroke:4.016x4.724 inches
102 x 120 mm
Power:135 hp
100.7 kW
Fuel system:direct injection with mechanical governor, Bosch in-line A pump with Bosch 5-hole injectors
Air cleaner:dual-element dry
Compression:17.5:1
Rated RPM:2200
Starter volts:12
Oil capacity:15.8 qts
15.0 L
Coolant capacity:19.5 qts
18.5 L (ROPS)
 21 qts
19.9 L (cab)
